Buick
>>
2001
>>
Park Avenue Ultra V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
System Diagram
>>
Trunk Ajar Switch
Trunk Ajar Switch

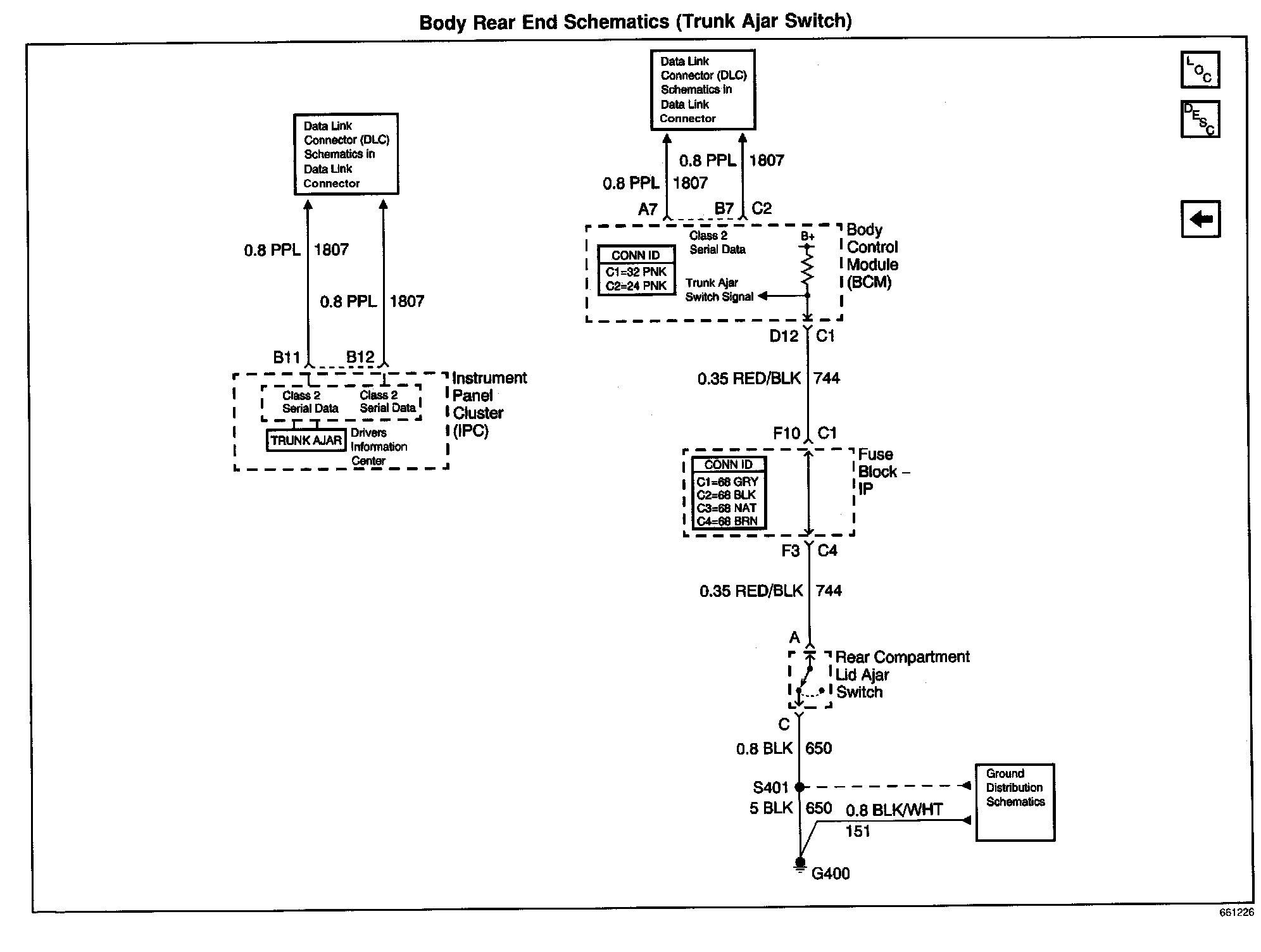

Body Rear End Schematics: Trunk Ajar Switch:
