Home
>>
Buick
>>
2001
>>
Park Avenue Ultra V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Lumbar Support Schematics
>>
Memory Power Lumbar
Memory Power Lumbar

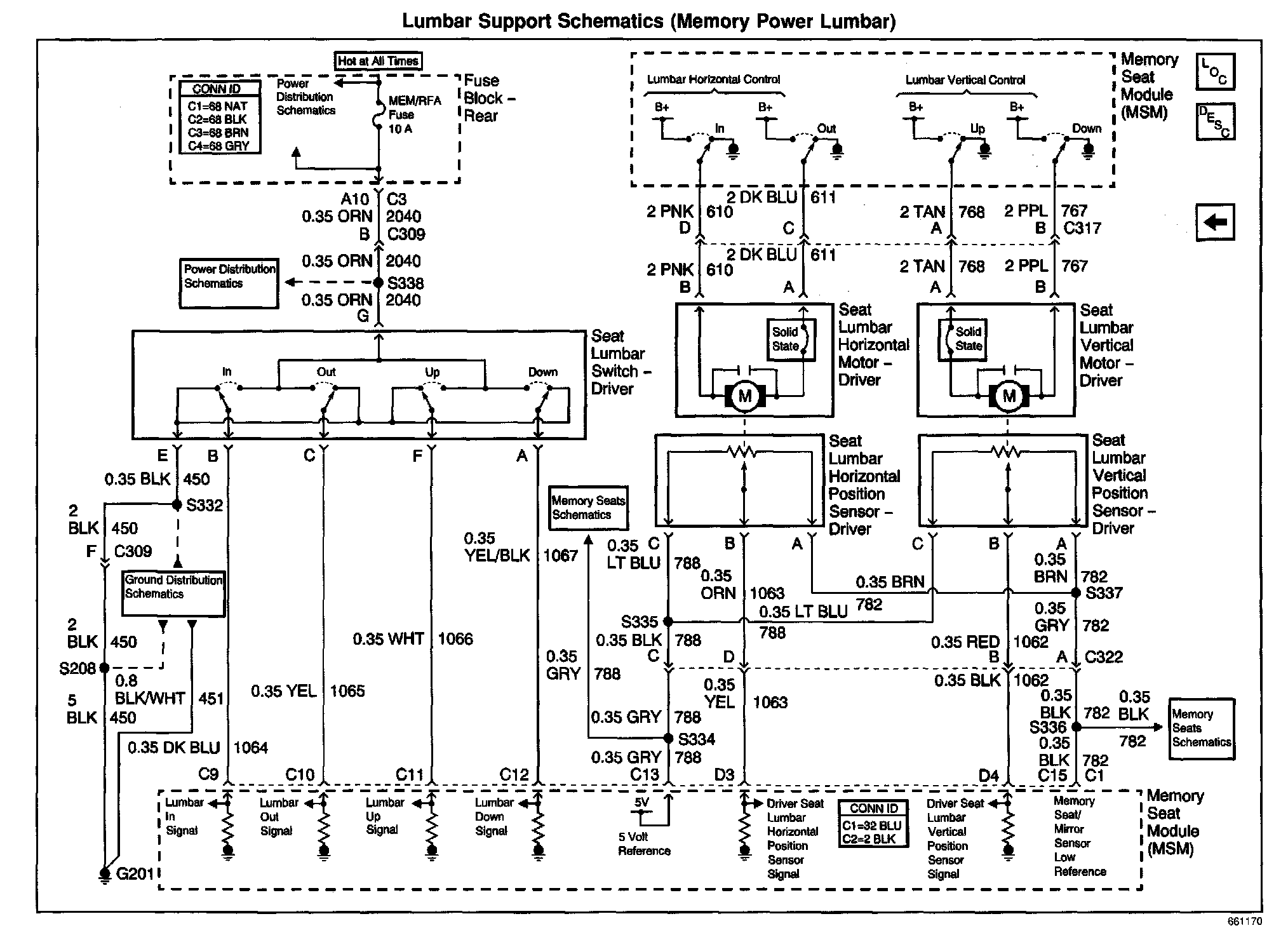

Lumbar Support Schematics: Memory Power Lumbar:
