Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Buick
>>
2001
>>
Park Avenue Ultra V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
Power Locks
>>
Door Control Module Schematics
>>
Passenger Door Module
Passenger Door Module

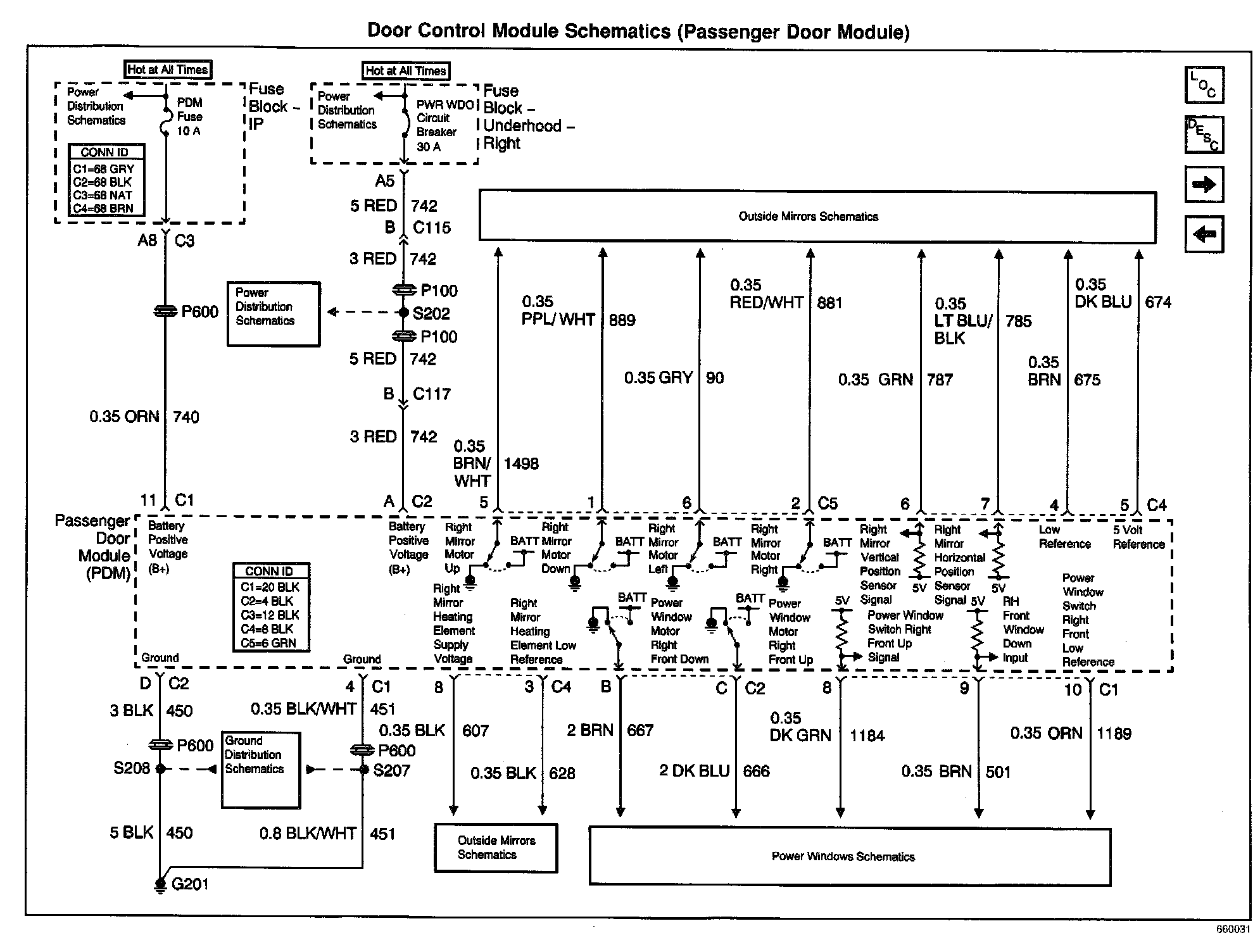

Door Control Module Schematics: Passenger Door Module:
