Cellular Phone
>>
Keypad and MIC Signals
Keypad and MIC Signals

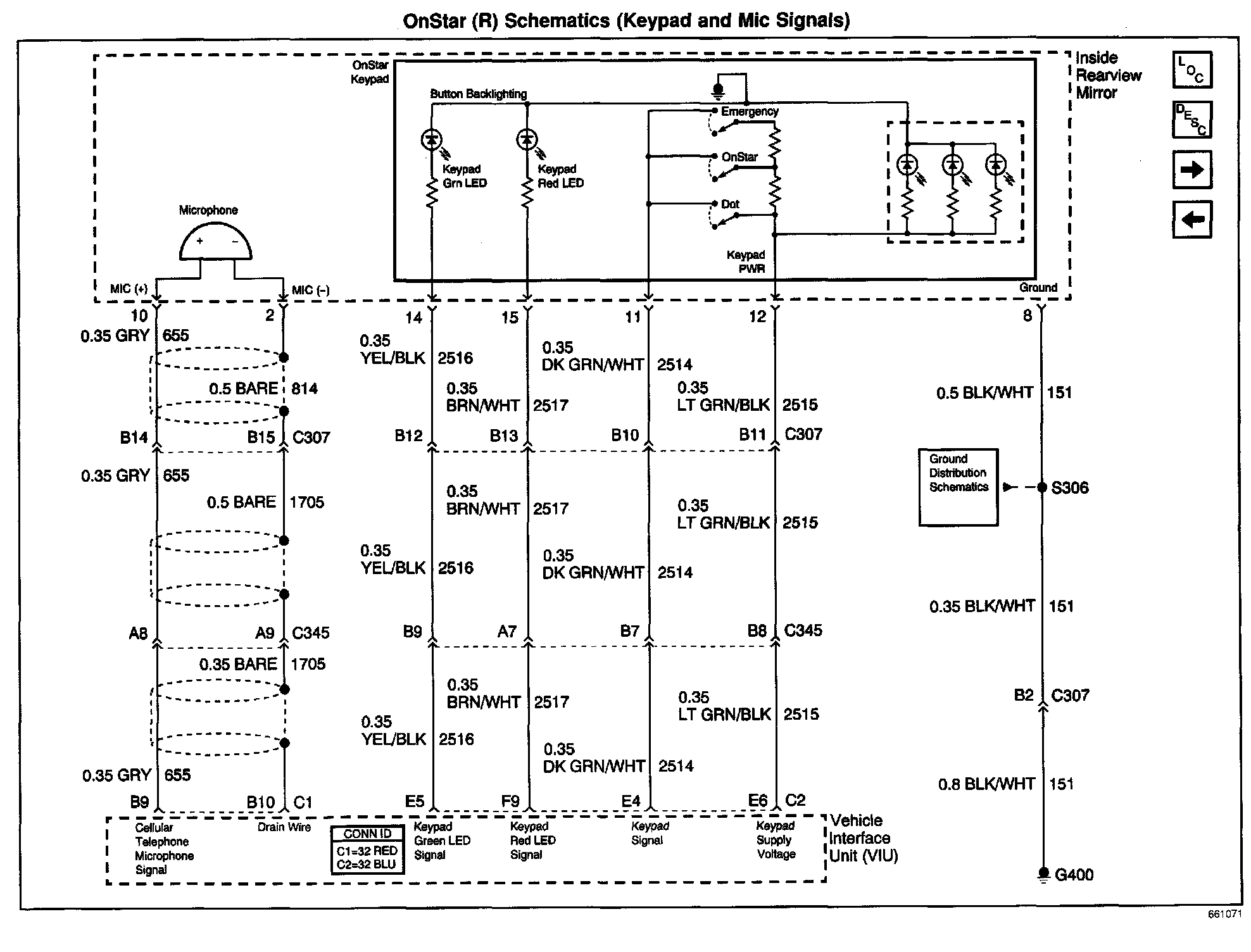

Onstar (R) Schematics: Keypad And Mic Signals:
