Front Floor Console Compartment Replacement

Front Floor Console Compartment Replacement

Removal Procedure

1. Remove the center console door. Refer to Front Floor Console Compartment Door Replacement (Front Floor Console Compartment Door Replacement) .
2. Remove the rear console door. Refer to Front Floor Console Rear Compartment Door Replacement (Front Floor Console Rear Compartment Door Replacement) .
3. Remove the rear console trim panel. Refer to Console Rear Trim Plate Replacement (Console Rear Trim Plate Replacement) .




4. Remove the fasteners retaining the rear duct assembly (1).
5. Remove the rear duct (1).

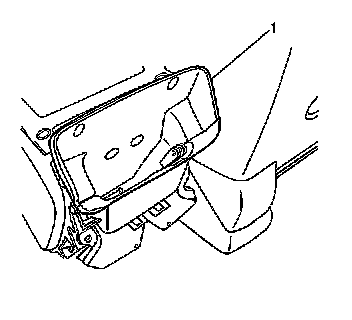

6. Remove the fasteners that fasten the storage (1) bin to the console.
7. Disconnect the electrical connector from the storage bin (1).
8. Remove the storage bin (1) from the console.



Installation Procedure





1. Install the storage bin (1) into the console.
2. Connect the electrical connector.
3. Install the fasteners to the storage bin (1).




4. Install the rear duct (1) to the console.
5. Install the fasteners that retain the rear duct (1).
6. Install the rear console trim panel. Refer to Console Rear Trim Plate Replacement (Console Rear Trim Plate Replacement) .
7. Install the rear console door. Refer to Front Floor Console Rear Compartment Door Replacement (Front Floor Console Rear Compartment Door Replacement) .
8. Install the console center door. Refer to Front Floor Console Compartment Door Replacement (Front Floor Console Compartment Door Replacement) .
