Console Replacement

Console Replacement

Removal Procedure





1. Raise the seat to the full up position.
2. Remove the rear air deflector.

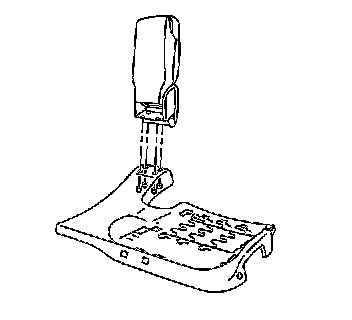

3. Remove the fasteners that retain the armrest to the seat frame.



Installation Procedure





1. Install the armrest to the seat frame.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the fasteners that retain the armrest to the front seat frame.

Tighten the fasteners to 10 N.m (89 lb in).

3. Install the rear air deflector.
