Console Rear Trim Plate Replacement

Console Rear Trim Plate Replacement

Removal Procedure





1. Partially remove the rear console panel in order to allow access to the rear air deflector control linkage.

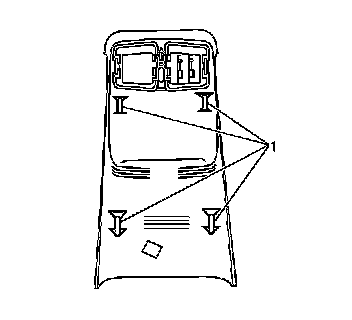

Pull rearward on the rear console panel in order to disengage the retainers (1).

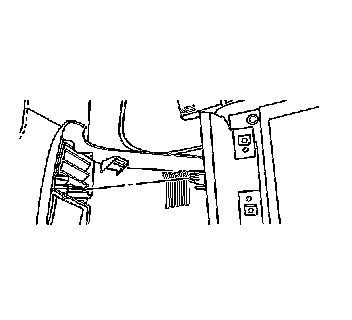

2. Use a flat bladed tool to release the linkage.
3. Remove the rear trim panel.
4. Remove the air deflectors from the rear trim panel by pulling outward, this is to allow for access to the rear air deflector control linkage on installation.



Installation Procedure





1. Align the rear console trim panel to the console.
Push inward to engage the retainers (1).




2. Through the air deflector openings fasten the rear air deflector control linkage to the control knob.
3. Install the air deflectors .
