Console Front Trim Plate Replacement

Console Front Trim Plate Replacement

Removal Procedure

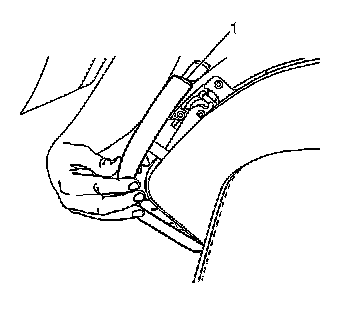

1. Pull outward on the front trim panel (1) in order to release the retaining clips.

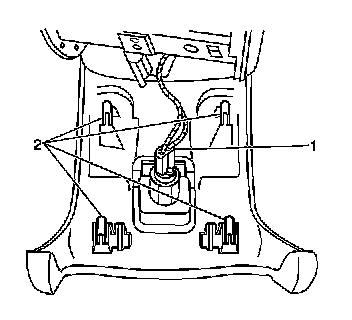

2. Disconnect the electrical connector (1).
3. Remove the trim panel.



Installation Procedure





1. Connect the electrical connector (1).
2. Align the retaining clips (2) on the trim panel with the console.
3. Push inward in order to secure the trim panel.
