Rear

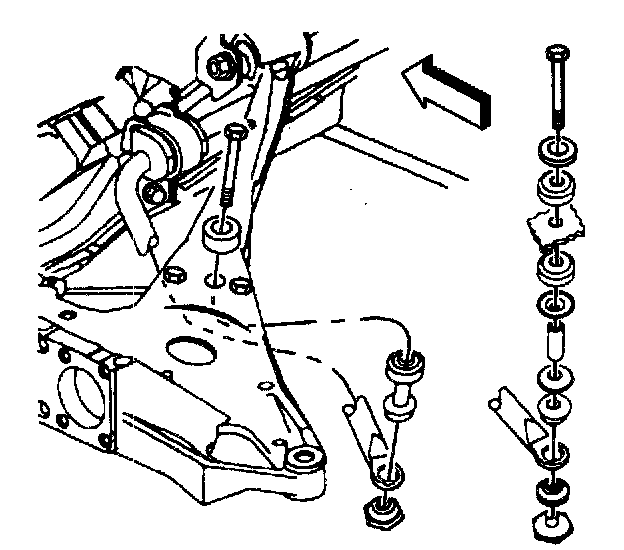

Removal Procedure
1. Raise and support the vehicle.





2. Remove the stabilizer shaft link bolts.
3. Remove the stabilizer shaft link insulators and spacer.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Loosely install the stabilizer link insulators, spacer, nut and bolt.
Tighten the stabilizer shaft link nut to 15 Nm (11 ft. lbs.).
2. Lower the vehicle.
