Front

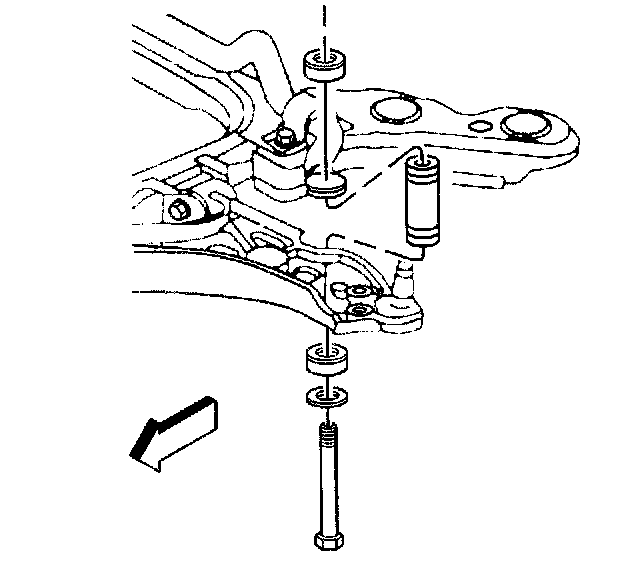

Removal Procedure
1. Raise and support the vehicle.





2. Remove the stabilizer shaft link bolt.
3. Remove the stabilizer shaft insulators and spacers.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Loosely install the stabilizer link components.
Tighten the stabilizer link nuts to 17 Nm (13 ft. lbs.).
2. Install the front wheels and tires.
3. Lower the vehicle.
