Rear

Removal Procedure

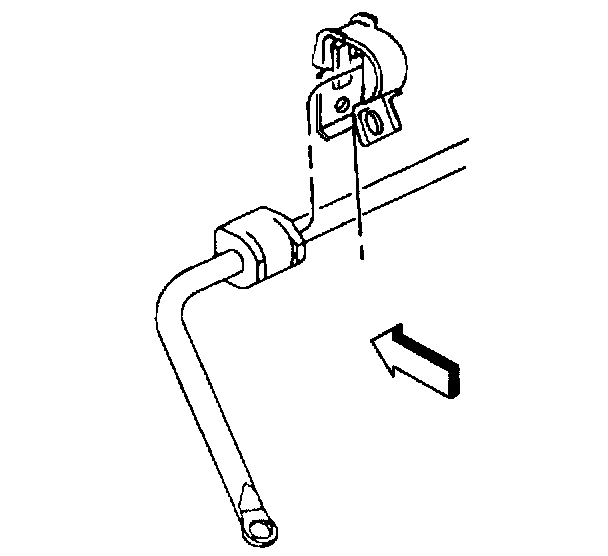

1. Raise and support the vehicle.





2. Remove the stabilizer shaft bracket retaining bolt.





3. Bend the open end of the stabilizer shaft bracket upward.
4. Remove the stabilizer shaft and insulator.

Installation Procedure

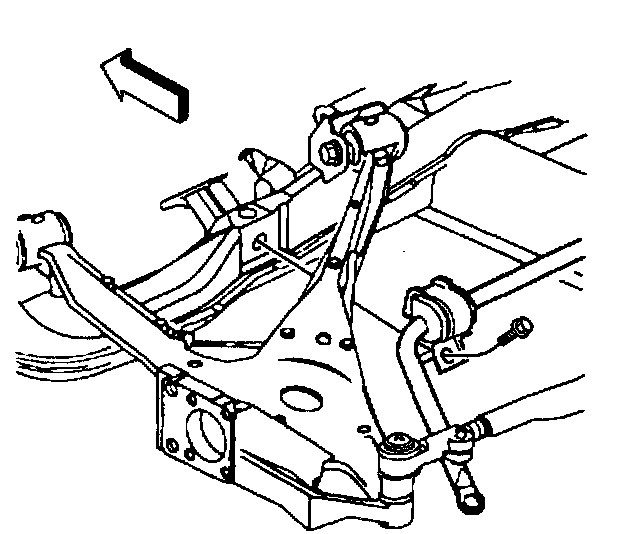

1. Install the stabilizer shaft insulator to the stabilizer shaft with the slit forward.
2. Bend the stabilizer shaft bracket downward to close around the insulator. Ensure that the stabilizer shaft is centered.

Notice: Refer to Fastener Notice in Service Precautions.





3. Install the stabilizer shaft bracket retaining bolt.
Tighten the stabilizer shaft bracket retaining bolt to 33 Nm (24 ft. lbs.).
4. Lower the vehicle.
