Tie Rod End: Service and Repair

- Tools Required
- J24319-B Universal Steering Linkage Puller

Removal Procedure
1. Raise and support the vehicle.
2. Remove the tire and wheel.

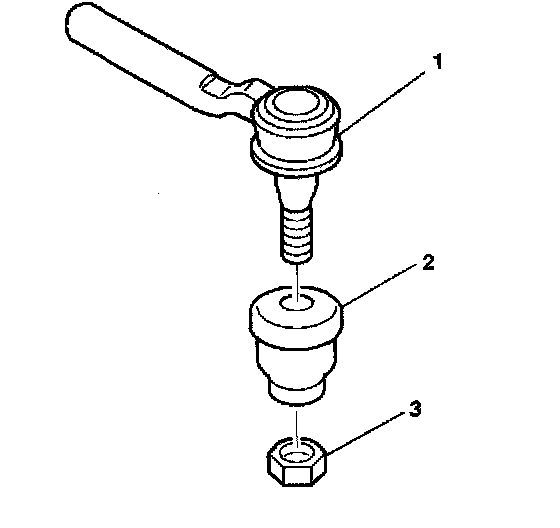

3. Remove the lock nut (3) from the outer tie rod (1).





4. Loosen the jam nut (2) on the inner tie rod (1).

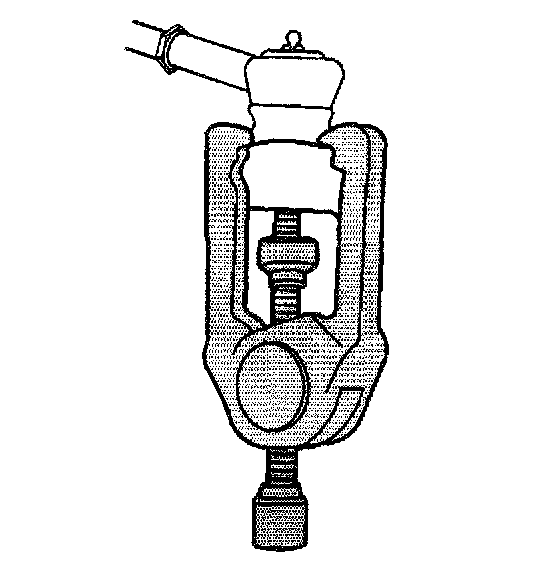

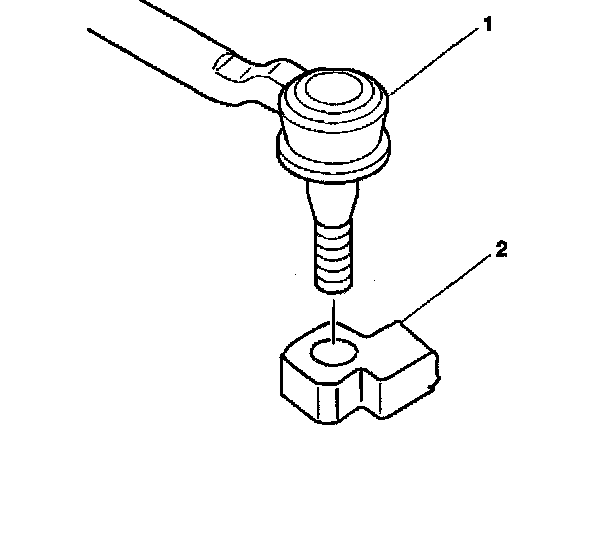

5. Using J24319-B remove the outer tie rod from the steering knuckle.

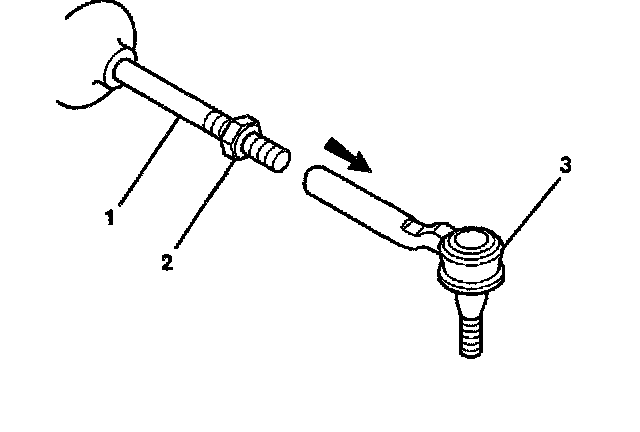

6. Remove the outer tie rod (3) from the inner tie.

Installation Procedure

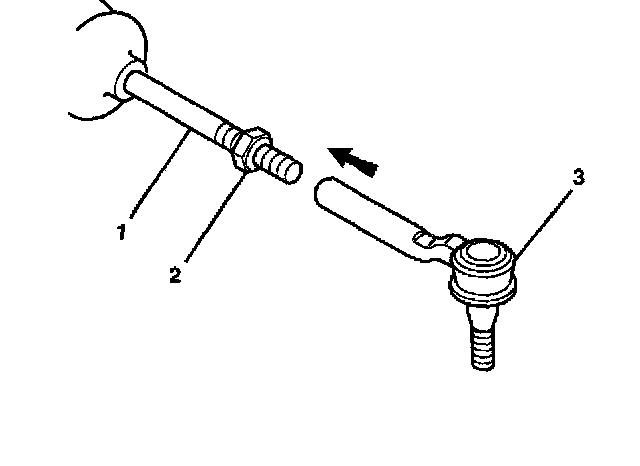

1. Install the outer tie rod (3) to the inner tie rod (1). Do not tighten the jam nut (2).





2. Install the outer tie rod (1) to the steering knuckle (2).

Notice: Refer to Fastener Notice in Service Precautions.

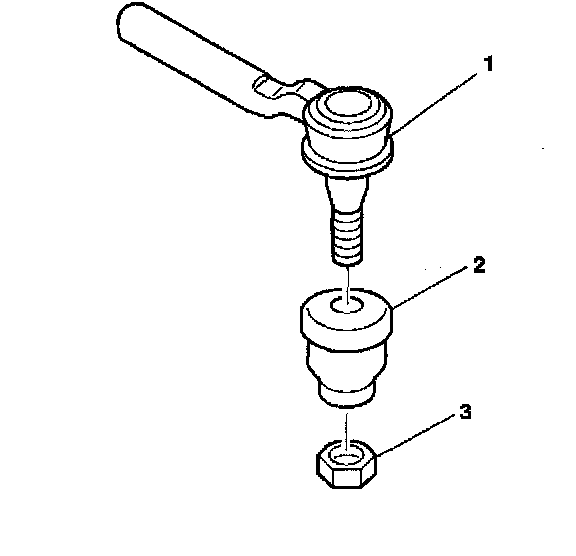

3. Install the outer tie rod lock nut (3).
Tighten the tie rod lock nut to 70 Nm (52 ft. lbs.).

Important: Be sure the rack and pinion boot is not twisted or puckered during toe adjustment.

4. Install the tire and wheel.
5. Lower vehicle.
6. Adjust the toe alignment.
