Power Steering Gear Heat Shield Replacement

Removal Procedure
1. Raise and support the vehicle.
1.1. Remove the stabilizer shaft links.
1.2. Rotate the stabilizer shaft downwards.





2. Remove the plastic clip from the power steering gear heat shield.

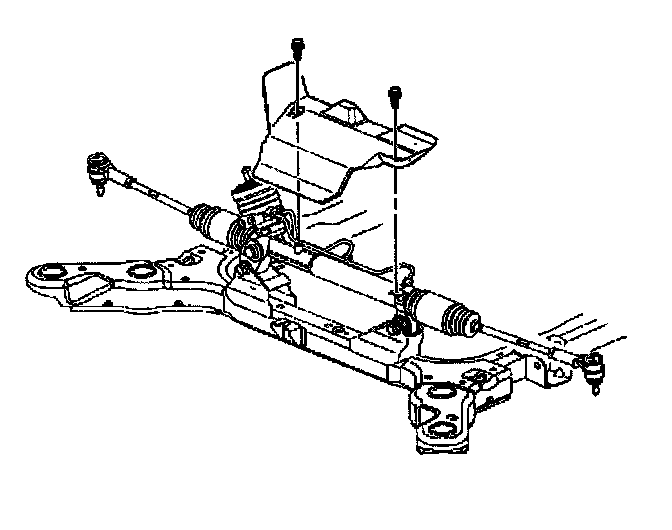

3. Remove the power steering gear heat shield retaining bolts.
4. Remove the power steering gear heat shield.

Installation Procedure
1. Install the power steering gear heat shield.

Notice: Refer to Fastener Notice in Service Precautions.

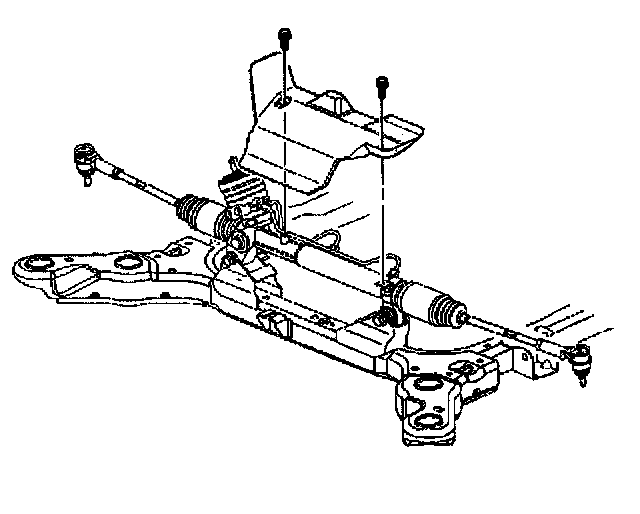

2. Install the power steering gear heat shield retaining bolts.
Tighten the power steering gear heat shield retaining bolts to 9 Nm (79 inch lbs.).
3. Install the plastic clip to the power steering gear heat shield.
4. Install the stabilizer shaft links.
5. Lower the vehicle.
