Turn Signal & Multifunction Switch - Assemble

1. Install the turn signal and multifunction switch assembly.

Notice: Refer to Fastener Notice in Service Precautions.

Important: The electrical contact on the turn signal and multifunction switch assembly must rest on the turn signal cancel cam assembly.





2. Screw the 2 pan head tapping screws (1) and (3) into the turn signal and multifunction switch assembly (2).
- Tighten the top pan head tapping screw (1) to 3 Nm (30 inch lbs.).
- Tighten the side pan head tapping screw (3) to 7 (62 inch lbs.).





3. Reconnect the connectors of the turn signal and multifunction switch assembly.
4. Install the wire harness straps.

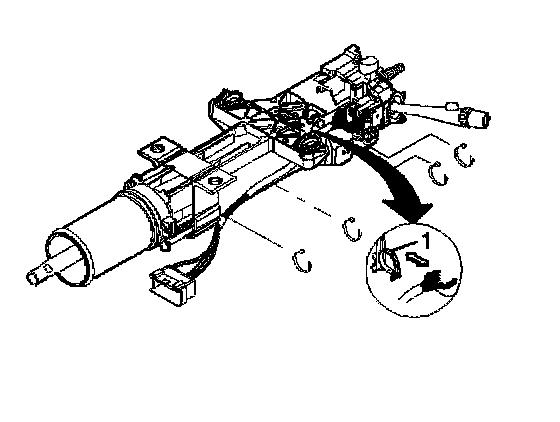

5. Install the wire harness assembly into the wire restraint clip (1).
6. Install the upper and lower trim covers.
