Shift Lever - Disassemble

1. Remove the upper and lower trim covers.

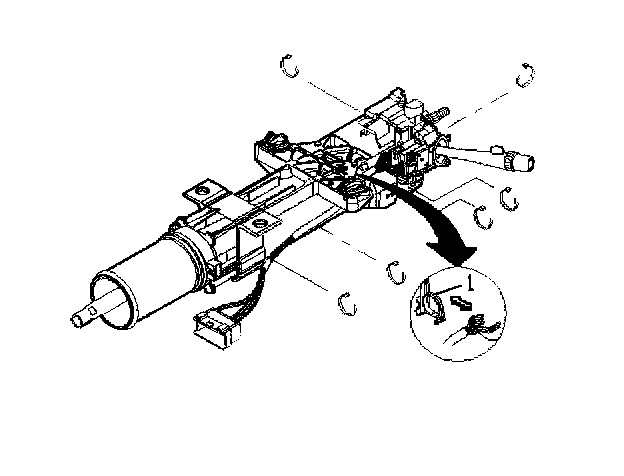

2. Remove the wire harness straps.





3. Remove the wire harness assembly from the wire restraint clip (1).

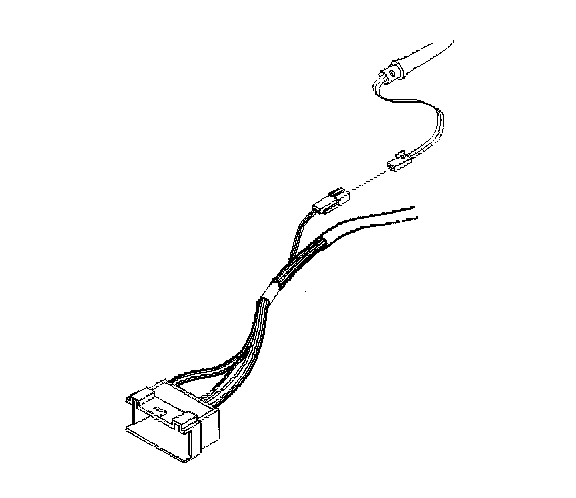

4. Disconnect the shift lever connector.

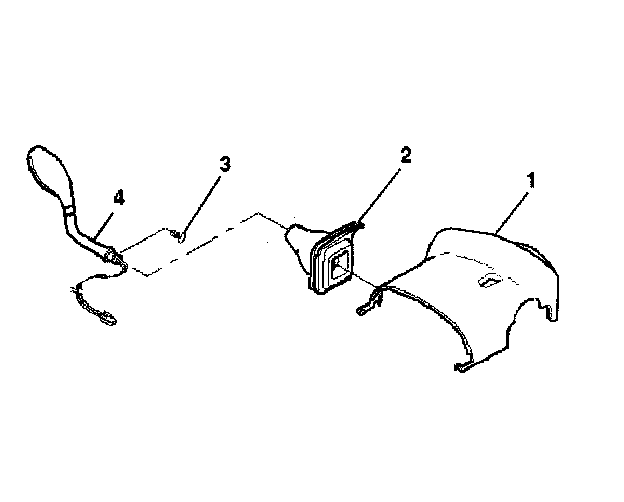

5. Remove the shift lever screw (3).
6. Remove the shift lever assembly (4).
7. Remove the shift lever seal (2) from the shift lever assembly (4).
