Shift Lever - Assemble

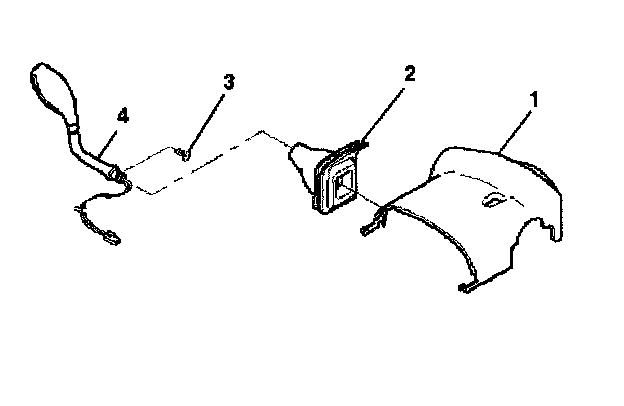

1. Install the shift lever seal (2) onto the shift lever assembly (4).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the shift lever assembly (4) and secure it with the shift lever screw (3).
Tighten the screw to 1.5 Nm (13 inch lbs.).

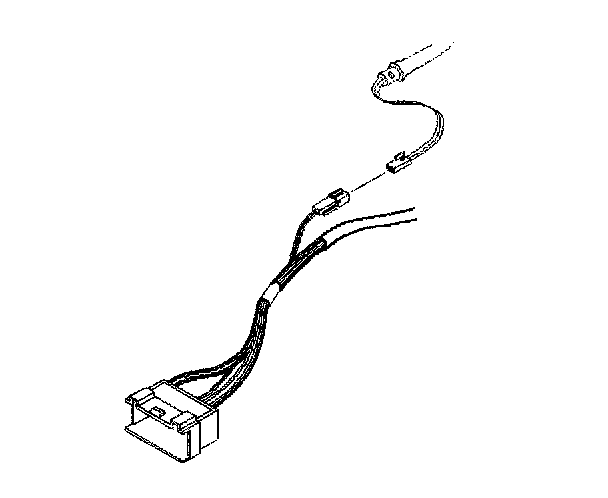

3. Reconnect the shift lever connector.

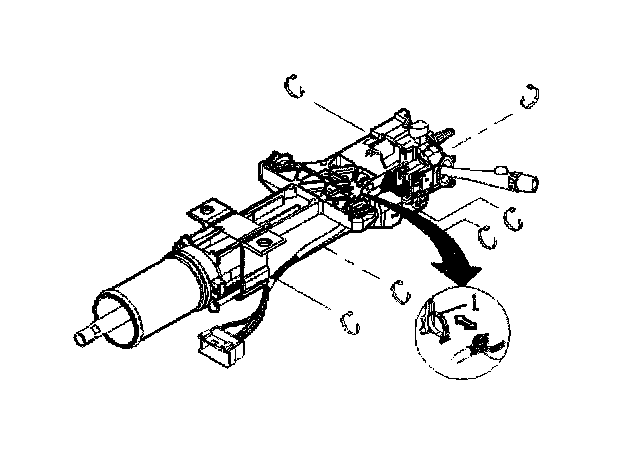

4. Install the wire harness assembly into the wire restraint clip (1).
5. Install the wire harness straps.
6. Install the upper and lower trim covers.
