Linear Shift - Assemble

- Tools Required
- J41396 Park Lock Cable Pliers

Notice: Refer to Fastener Notice in Service Precautions.

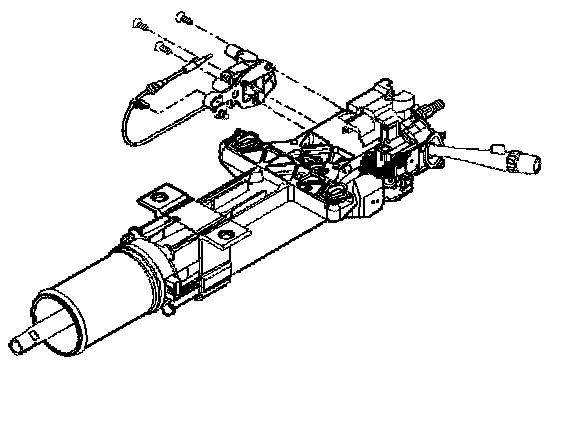

1. Install the linear shift assembly and secure using the 3 flat head 6 lobed socket tap screws.
Tighten the 3 flat head 6 lobed socket tap screws to 10 Nm (89 inch lbs.).





2. Connect the park lock cable assembly (1).
3. The lock cylinder should be in the OFF-LOCK position.

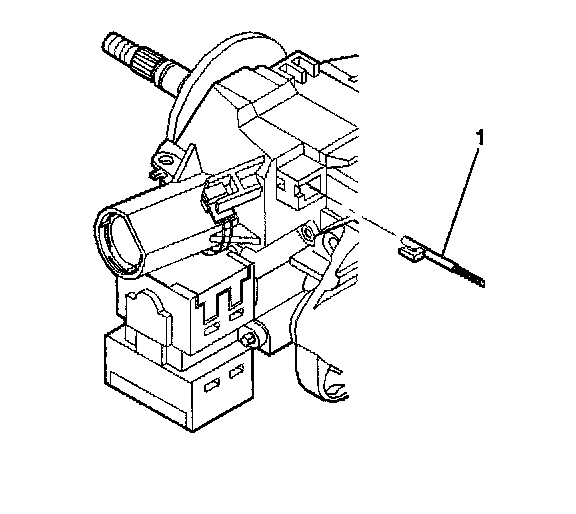

4. The locking tab at the end of the park lock cable assembly (1) must be installed into the electronic lock module assembly.
5. Adjust the park lock cable assembly.
5.1. Use the gear shift lever to put the column in the PARK position.
5.2. Put the ignition switch in the OFF-LOCK position. Remove the key.

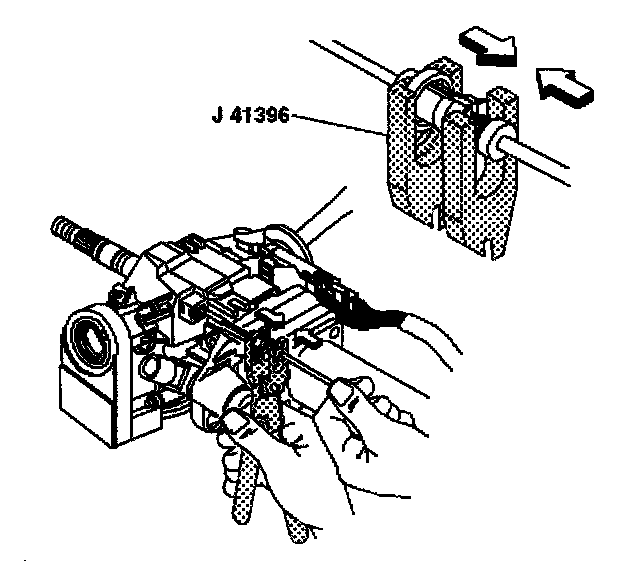

5.3. Unlock the adjuster ring on the park lock cable assembly with J41396.
5.4. Pull on the cable until the park lock latch contacts the gear shift lever. Release the cable.
5.5. Lock the adjuster ring securely in place on the park lock cable assembly with J41396.
6. Inspect the park lock cable assembly.
6.1. Put the lock cylinder in the OFF-LOCK position. The gear shift lever should not be able to shift out of the PARK position.
6.2. Turn the key to the run position and put the gear shift lever in the NEUTRAL position.
6.3. With the gear shift lever in the NEUTRAL position the lock cylinder should not be able to go into the OFF-LOCK position.
6.4. Put the gear shift lever in the PARK position.
6.5. Put the lock cylinder in the OFF-LOCK position and then remove the key.
7. Install the automatic transmission shift lock control assembly.
8. Install the upper and lower trim covers.
