Tilt Spring - Assemble

1. Lubricate spring guide with synthetic grease. Install the spring guide into the tilt spring.

Caution: Refer to Tilt Spring Caution in Service Precautions.

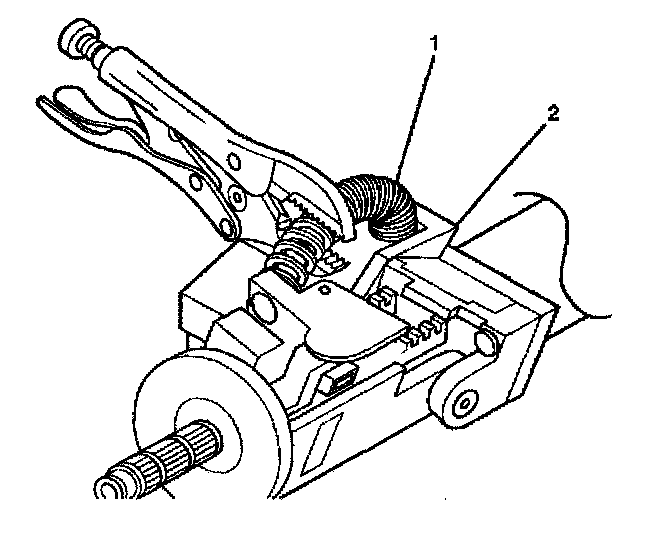

2. Install the tilt spring (1).
2.1. Install the tilt spring (1) to the post on the steering column support assembly (2).
2.2. Secure the tilt spring (1).
3. Install the upper and lower trim covers.
