Power Steering Pump Replacement
Removal Procedure1. Remove the drive belt. Drive Belt Replacement in Engine.
2. Raise and support the vehicle.

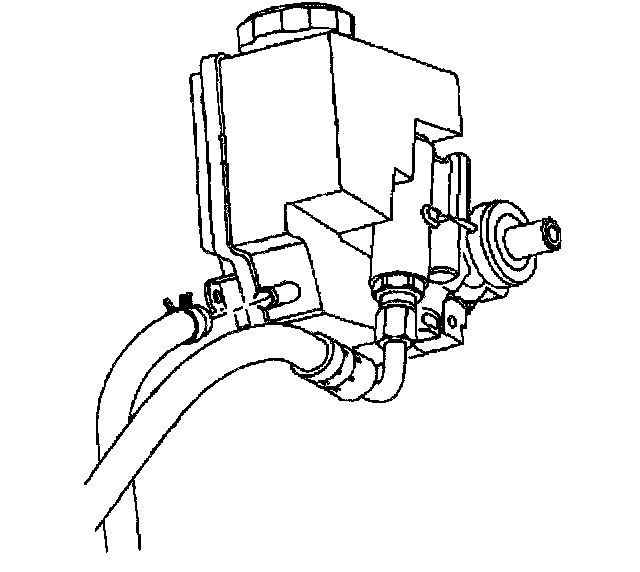

3. Install a drain pan under the vehicle.

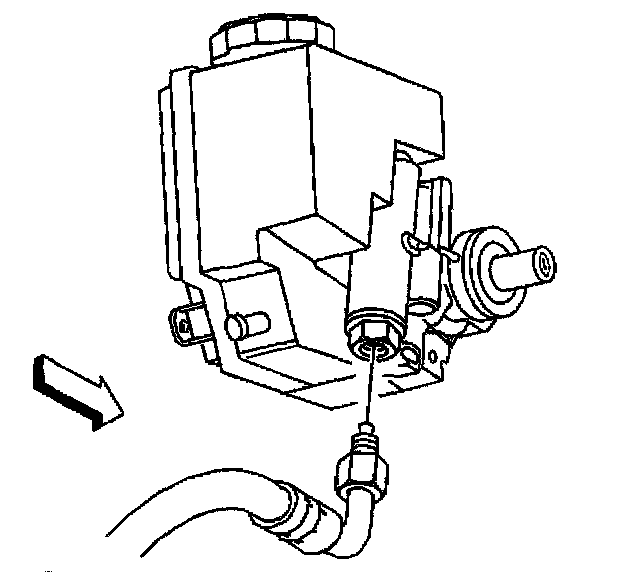

4. Disconnect the power steering pressure hose from the power steering pump.
5. Disconnect the power steering return hose from the power steering pump.
6. Disconnect the wiring harness from the power steering pump.
7. Lower the vehicle.
8. Remove the coolant recovery reservoir.

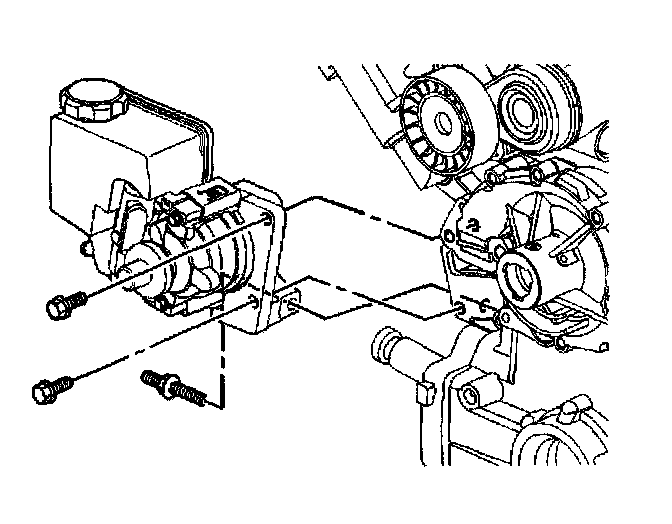

9. Remove the power steering pump retaining bolts.
10. Remove the power steering pump.
11. Transfer the power steering pulley as needed.
Installation Procedure

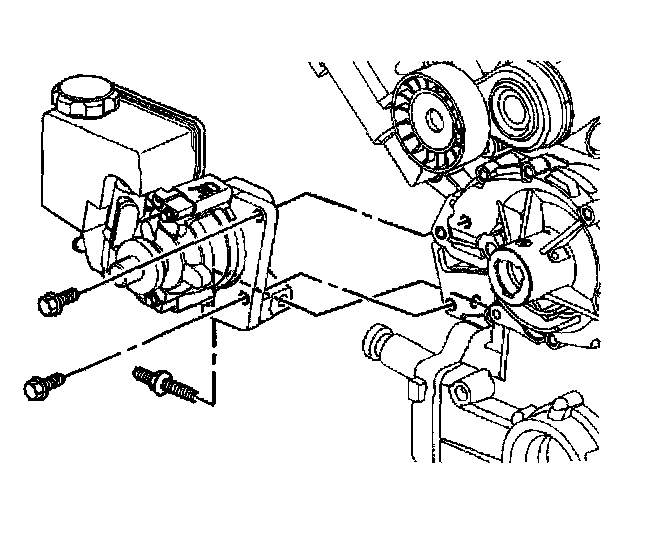

1. Install the power steering pump to the engine.
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the power steering pump retaining bolts.
Tighten the power steering pump retaining bolts to 27 Nm (20 ft. lbs.).
3. Install the coolant recovery reservoir.
4. Raise the vehicle.
5. Connect the wiring harness to the power steering pump.

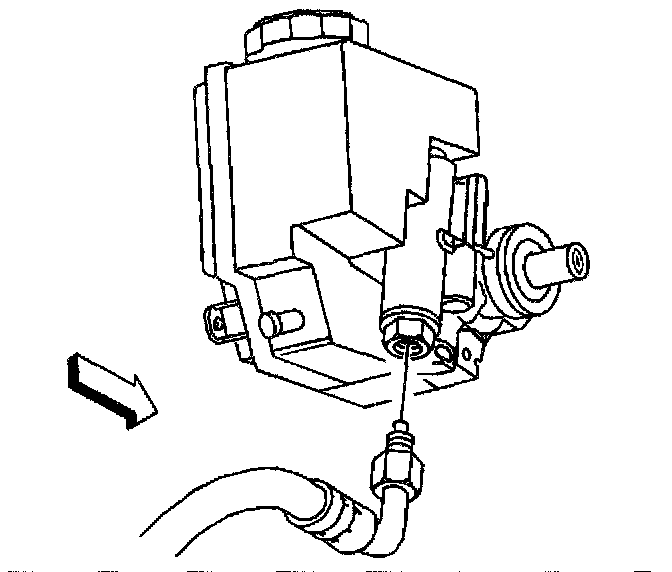

6. Connect the power steering pressure hose to the power steering pump.
Tighten the power steering pressure hose to 27 Nm (20 ft. lbs.).

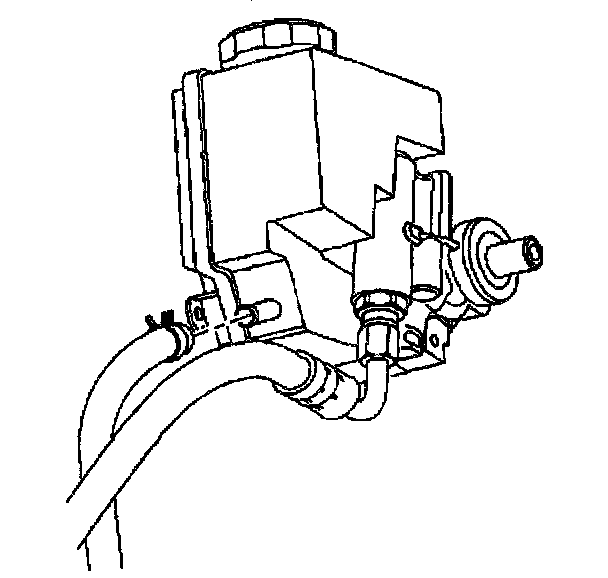

7. Connect the power steering return hose to the power steering pump.
8. Lower the vehicle.
9. Install the drive belt.
10. Bleed the power steering system.
11. Inspect the power steering system for leaks.
