REMOVAL PROCEDURE

CAUTION: Refer to SIR Caution in Service Precautions.

NOTE: Refer to Servicing and Replacing Seat Belts Notice in Service Precautions.




1. Remove the seat belt tower rear trim cover.

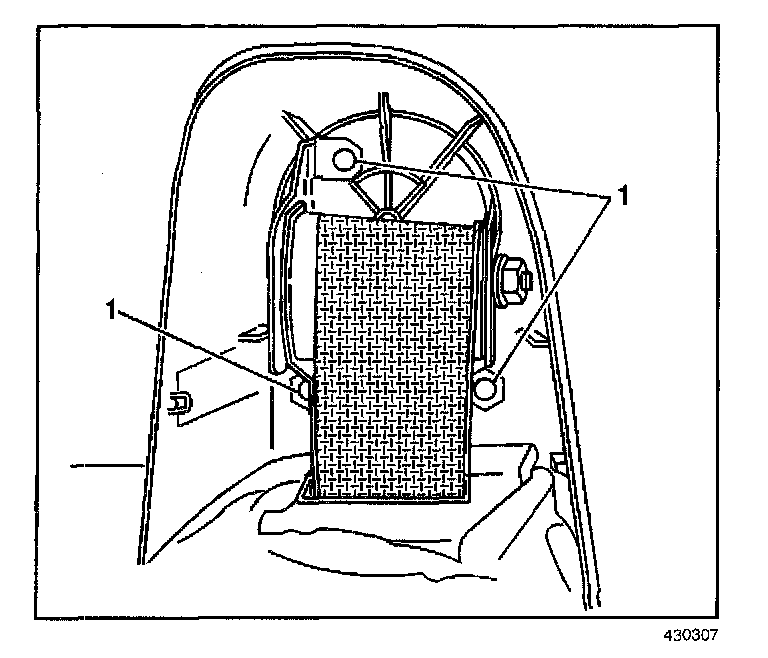

2. Remove the tower front trim cover fasteners (1).

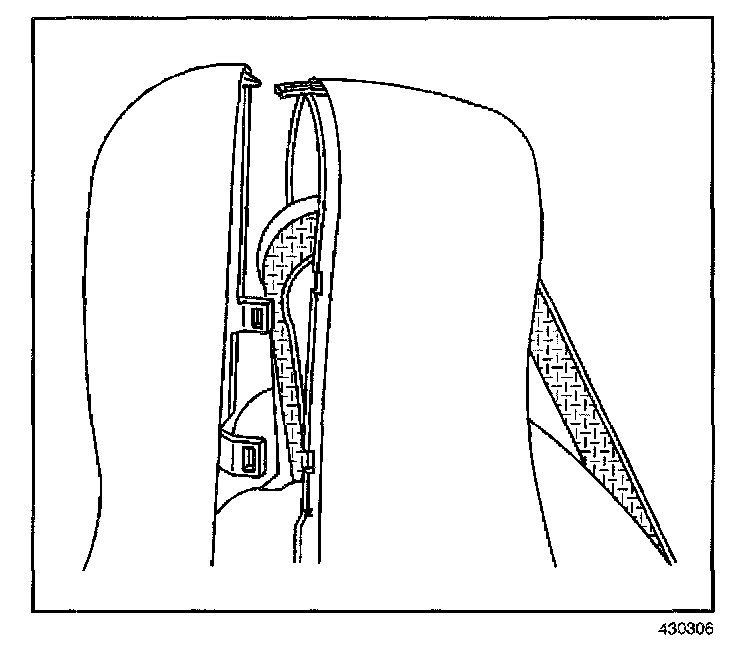

3. Unzip the seat back from the bottom up, in order to expose the shoulder retractor fastener.
4. Remove the shoulder retractor fastener.




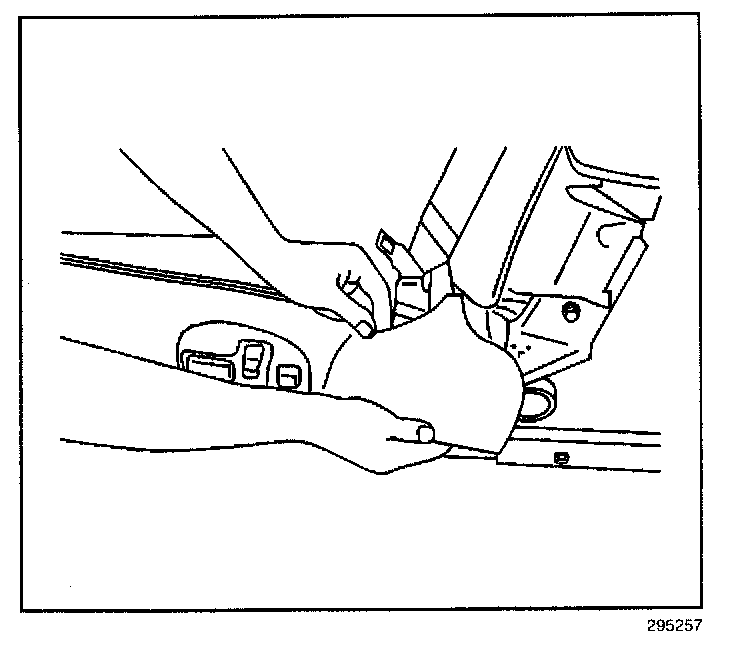

5. Remove the lap retractor cover.
6. Remove the lap retractor fastener and pull out the lap retractor.
7. Remove the lap retractor by pulling out the retractor.

INSTALLATION PROCEDURE




1. Install the lap retractor over the stud. Align the tab on the retractor with the notch in the seat frame.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the lap retractor fastener.

Tighten
Tighten the fastener to 35 N.m (26 lb ft).

3. Install the lap belt retractor cover.




4. Install the shoulder belt retractor.
5. Install the shoulder belt retractor fastener.

Tighten
Tighten the fasteners to 35 N.m (26 lb ft).

6. Install the tower front trim cover fasteners (1).
7. Zip the seat back from the top to the bottom.




8. Install the seat belt tower rear cover.
