Center Rear

REMOVAL PROCEDURE

NOTE: Refer to Servicing and Replacing Seat Belts Notice in Service Precautions.




1. Remove the rear seat cushion.
2. Remove the center rear seat belt anchor fastener from the floor.
3. Remove the rear seat back.

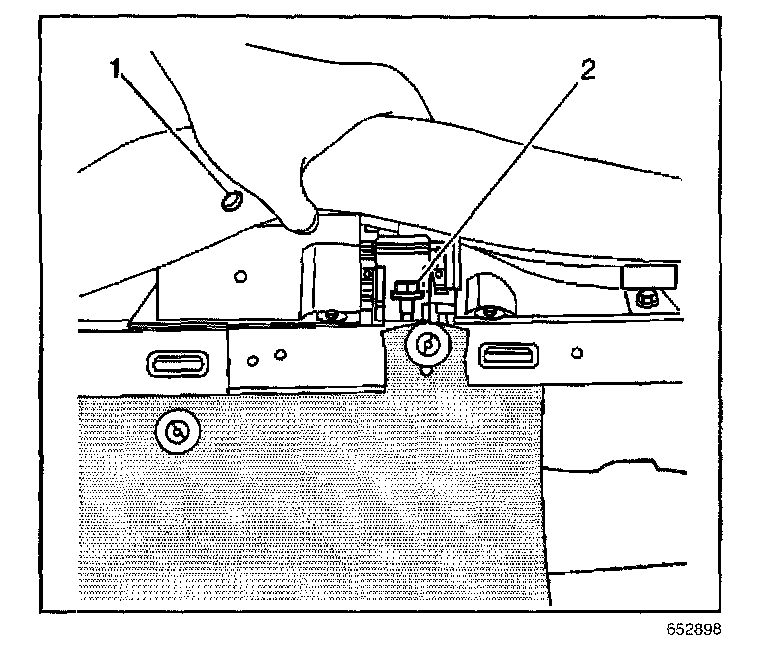

4. Remove the push-in retainers securing the rear shelf trim (1).




5. Release the center shoulder belt escutcheon by prying upward on the front corner.




6. Carefully lift up-ward on the rear shelf trim enough to expose the retractor fastener (2).
7. Remove the fastener (2).
8. Remove the front rear compartment trim panel.
9. Remove the retractor through the rear compartment.
10. Feed the center shoulder belt and escutcheon through the opening in the rear shelf trim panel.

INSTALLATION PROCEDURE




1. From the rear compartment, feed the rear seat center shoulder belt and escutcheon through opening in the rear shelf trim panel.
2. Install the retractor to the cross brace.
3. Carefully lift upward on the rear shelf trim panel.

NOTE: Refer to Fastener Notice in Service Precautions.

4. From inside the vehicle, install the center rear seat belt retractor fastener (2).

Tighten
Tighten the center rear seat belt retractor fastener (2) to 41 N.m (30 lb ft).




5. Install the pushing fastener in order to secure the rear shelf trim panel.
6. Install the center rear seat belt escutcheon to the rear shelf opening.
7. Install the rear seat back.




8. Install the center rear seat belt anchor fastener to the floor.

Tighten
Tighten the anchor fastener to 41 N.m (30 lb ft).

9. Install the rear seat cushion.
