Center Front

REMOVAL PROCEDURE

NOTE: Refer to Servicing and Replacing Seat Belts Notice in Service Precautions.




1. Remove the seat assembly. Refer to Seat Replacement - Split Bench in Seats.

IMPORTANT: The center belt assembly is riveted to the front seat adjusting rail for in-plant assembly and the rivet does not need to be replaced.

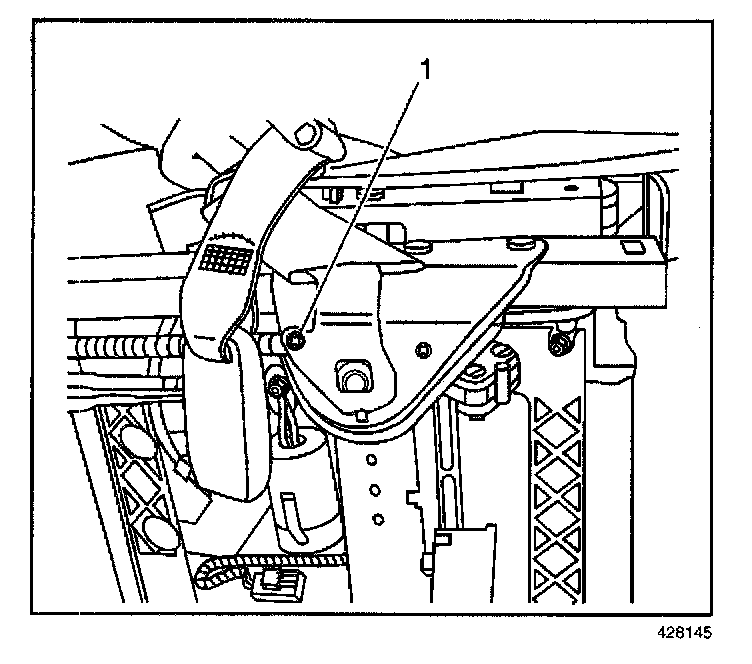

2. Drill out the rivet (1).
3. Remove the center belt assembly.

INSTALLATION PROCEDURE




1. Install the center belt assembly to the seat assembly adjuster rail. The rivet (1) was installed for location purposes during production assembly and does not need to be reinstalled. However, if replaced seat installation difficulty may be reduced.

CAUTION: Make sure the anchor bolt is through the seat adjuster track and center belt holes. Failure to do so could result in system failure, leading to injury in the event of a collision.

2. Install the seat assembly into the vehicle. Refer to Seat Replacement - Split Bench in Seats.
