Rear

REMOVAL PROCEDURE

NOTE: Refer to Servicing and Replacing Seat Belts Notice in Service Precautions.




1. Remove the rear seat cushion.
2. Remove the rear seat back.
3. Remove the rear shelf trim panel.

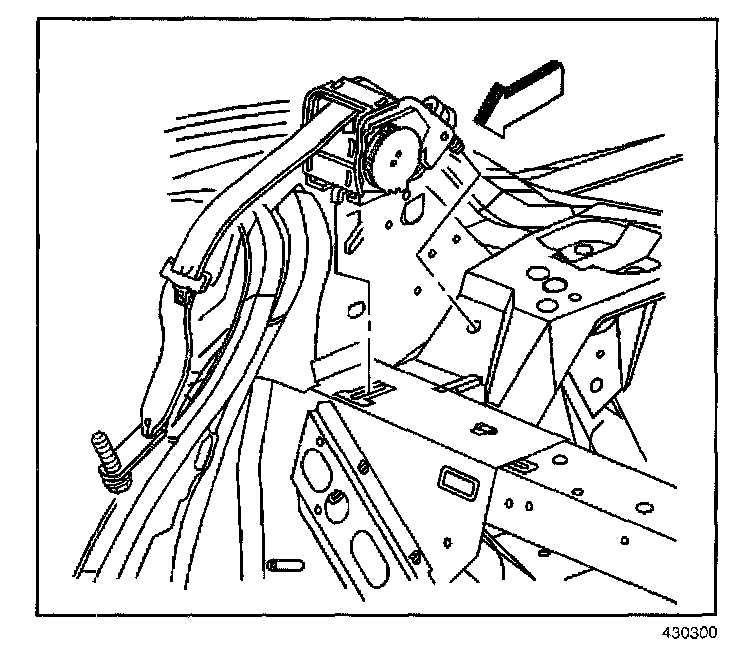

4. Remove the rear seat back shoulder retractor.

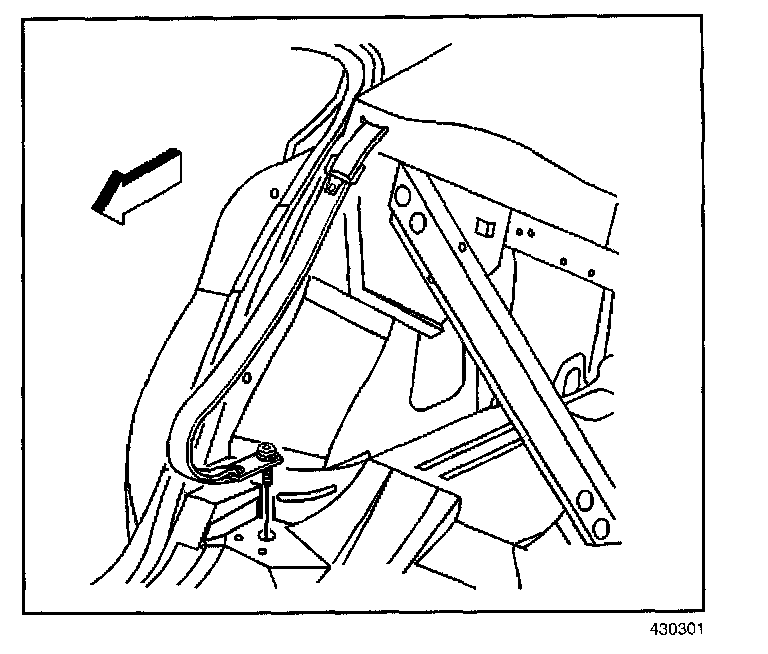

5. Remove the rear seat shoulder belt anchor fastener.
6. Remove the rear seat shoulder belt and retractor.

INSTALLATION PROCEDURE




1. Install the rear seat shoulder belt retractor.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the rear seat shoulder belt retractor fastener.

Tighten
Tighten the rear seat shoulder belt retractor fastener to 41 N.m (30 lb ft).

3. Verify that the belt is not twisted.
4. Align the anchor plate between the dimples in the floor pan with the plate facing forward.
5. Install the anchor fastener.

Tighten
Tighten the rear seat outer lower fastener to 41 N.m (32 lb ft).




6. Install the rear shelf trim panel.
7. Install the rear seat back.
8. Install the rear seat cushion.
