Center Rear

REMOVAL PROCEDURE

NOTE: Refer to Servicing and Replacing Seat Belts Notice in Service Precautions.




1. Remove the rear seat cushion.
2. Remove the rear shelf trim panel.
3. Remove the rear seat center belt anchor fastener.




4. Disengage the center belt escutcheon from the rear shelf panel.
5. Flip the rear seat center belt up on the rear shelf panel to expose the retractor anchor fastener.




6. Remove the rear seat center belt retractor anchor fastener.

INSTALLATION PROCEDURE

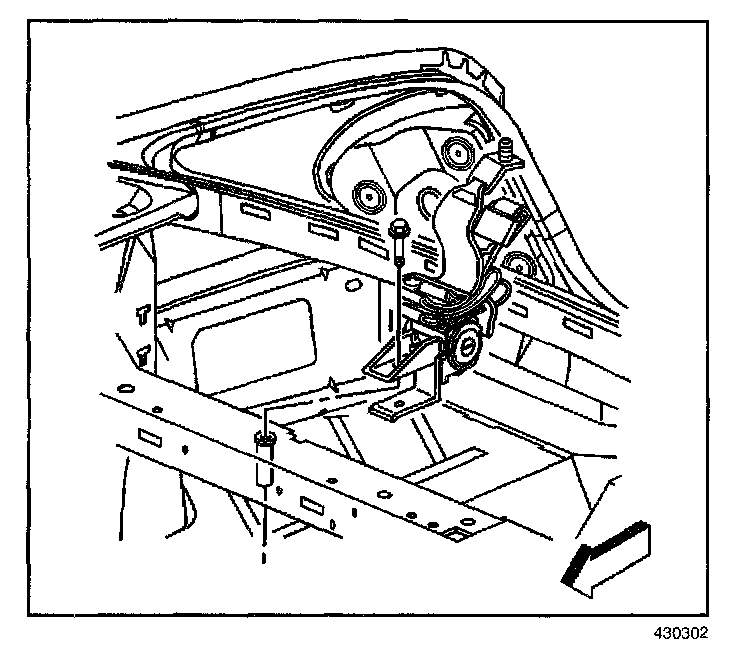

1. Install the rear seat center retractor on to the cross car beam. Ensure the retainer tab engages the notch in the beam.
2. From the rear compartment, feed the rear seat center belt anchor plate and belt through opening in the rear shelf panel.

NOTE: Refer to Fastener Notice in Service Precautions.

3. From inside the vehicle, install the rear seat center shoulder retractor fastener.

Tighten
Tighten the rear seat center shoulder retractor fastener to 30 N.m (22 lb ft).

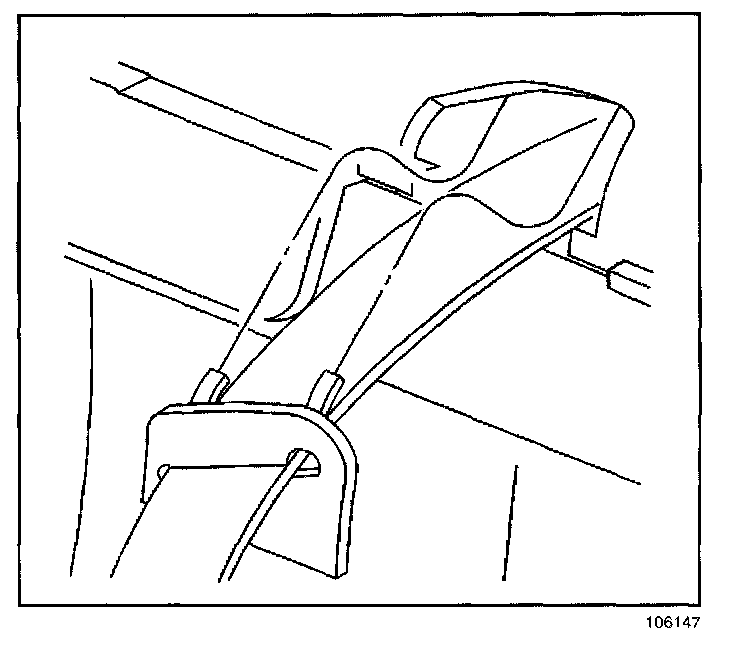

4. Install the rear seat center belt escutcheon to the rear shelf opening.

IMPORTANT: Ensure that the fastener threads and fastener hole are tree of any sealer patch material and that the belt is not twisted.

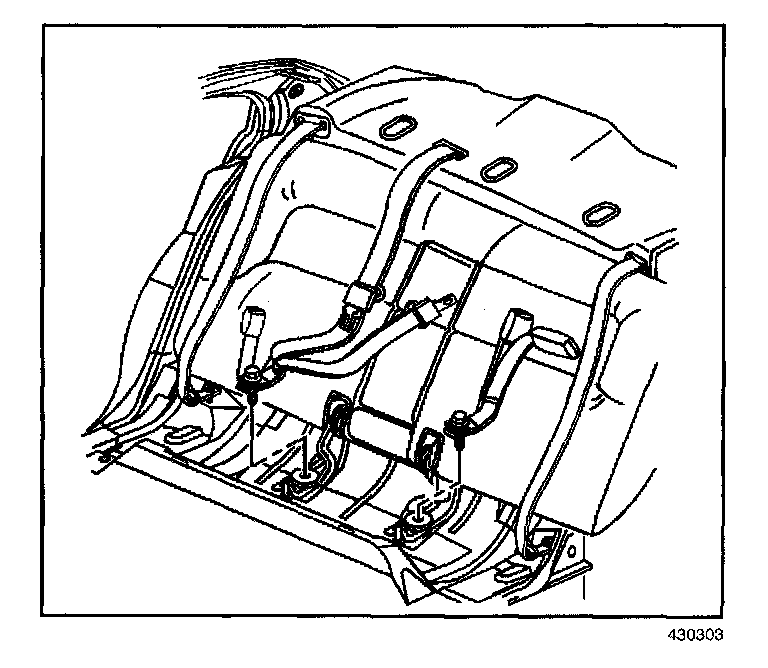

5. Install the rear seat center belt lower fastener. Ensure the belt anchor is facing forward.

Tighten
Tighten the rear seat center belt lower fastener to 41 N.m (30 lb ft).

6. Install the rear shelf trim panel.
7. Ensure the seat belt buckles are stowed in the seat back pockets and install the rear seat cushion. Refer to Seat Cushion Replacement - Rear in Seats.
