EVAP Hoses/Pipes Replacement - Engine/Chassis

REMOVAL PROCEDURE




1. Remove the chassis fuel pipe bundle. Refer to Fuel Hose/Pipes Replacement - Filter to Engine.

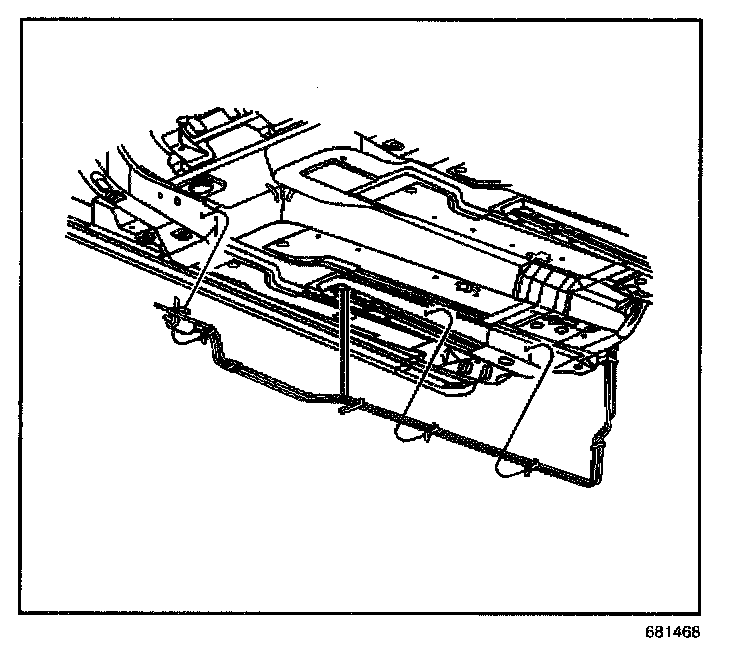

2. Separate the purge pipe from the fuel pipe bundle.

INSTALLATION PROCEDURE




1. Install the EVAP purge pipe in the fuel pipe bundle.
2. Install the fuel pipe bundle. Refer to Fuel Hose/Pipes Replacement - Filter to Engine.
