Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the fuel injector sight shield.

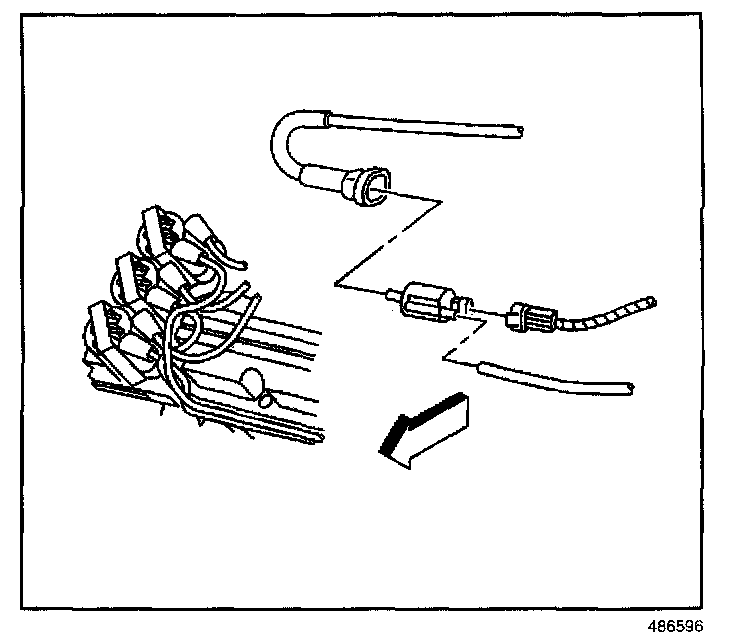

2. Disconnect the EVAP canister purge valve harness connector.
3. Disconnect the vacuum hoses from the EVAP canister purge valve.
4. Disconnect the purge pipe from the EVAP canister purge valve.

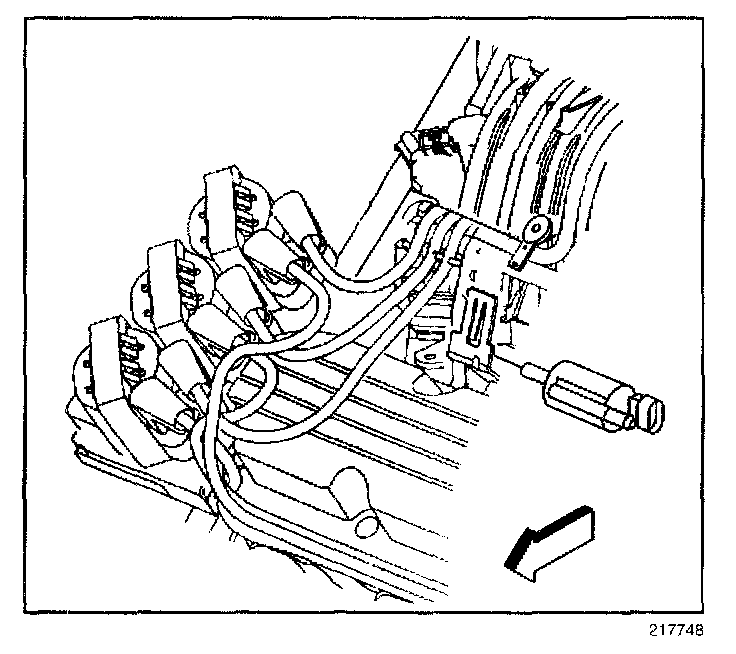

5. Release the tab on the EVAP canister purge valve bracket to remove the valve and remove the EVAP canister purge valve.

INSTALLATION PROCEDURE




1. Install the EVAP canister purge valve on the canister bracket.

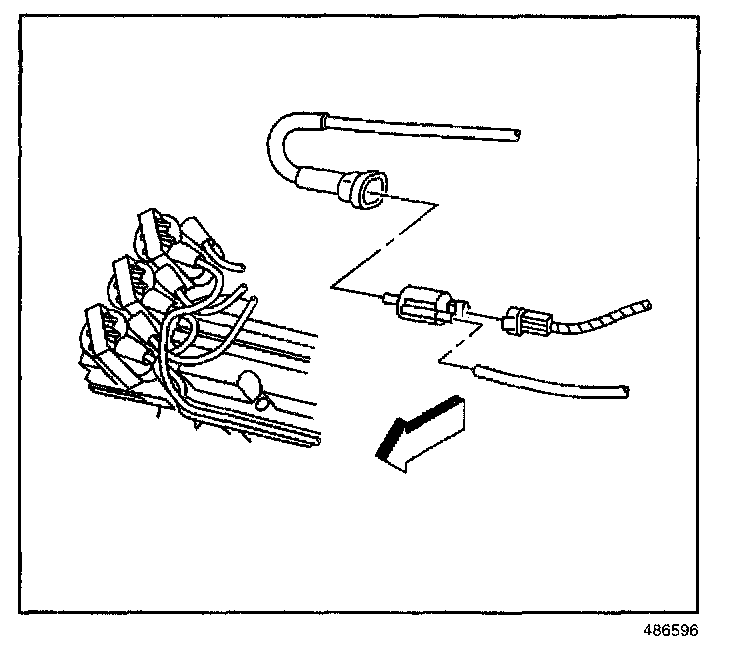

2. Connect the purge pipe to the EVAP canister purge valve.
Connect the vacuum hose to the EVAP canister purge valve.
3. Connect the EVAP canister purge valve harness connector.
4. Install the fuel injector sight shield.
