Ashtray Lamp Bulb Replacement

REMOVAL PROCEDURE




1. Remove the ashtray assembly from the vehicle. Refer to Ashtray Replacement in Instrument Panel, Gauges and Warning Indicators.

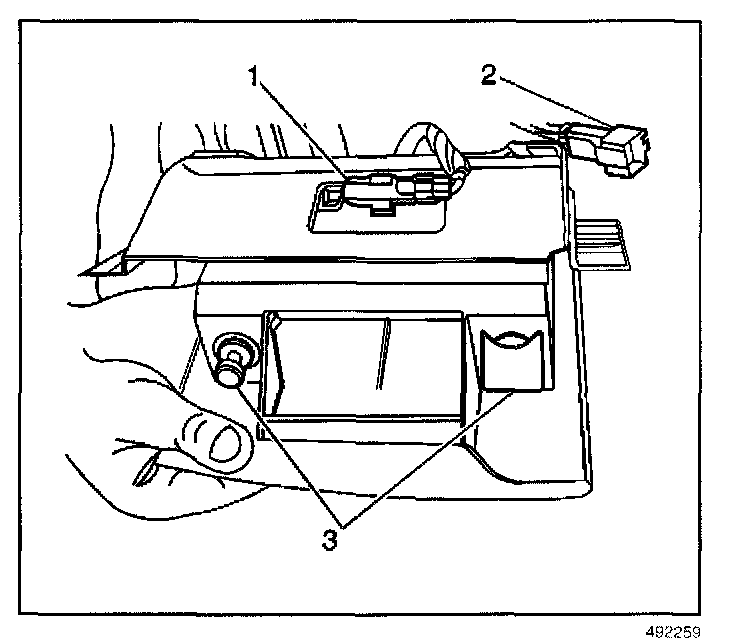

2. Remove the bulb housing (1) from the ashtray frame.
3. Remove the bulb from the bulb housing (1).

INSTALLATION PROCEDURE




1. Install the bulb into the bulb housing (1).
2. Install the bulb housing (1) into the ashtray frame.
3. Install the ashtray assembly into the vehicle. Refer to Ashtray Replacement in Instrument Panel, Gauges and Warning Indicators.
