Center Mounted Brake Lamp: Service and Repair

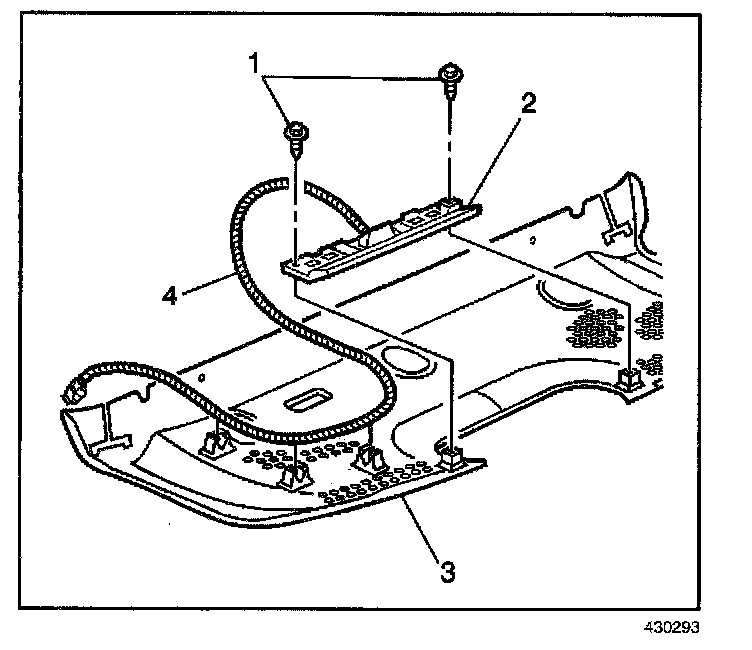

HIGH MOUNTED STOPLAMP REPLACEMENTREMOVAL PROCEDURE
1. Remove the rear shelf trim panel (3).
2. Remove the high mounted stop lamp wiring (4) from the rear shelf panel (3).
3. Remove the fasteners (1) retaining the high mounted stop lamp (2) to the rear shelf trim panel.
4. Remove the high mount stop lamp (2) from the rear shelf trim panel (3).
INSTALLATION PROCEDURE
1. Install the high mount stop lamp (2) to the rear shelf trim panel (3).
2. Install the high mounted stop lamp wiring (4) to the rear shelf panel (3).
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the fasteners that secure the high mount stop lamp (2) to the rear shelf trim panel (3).
Tighten
Tighten the fasteners to 2 N.m (18 lb in).
4. Install the rear shelf trim panel (3).
