Head Up Display Switch Replacement

REMOVAL PROCEDURE

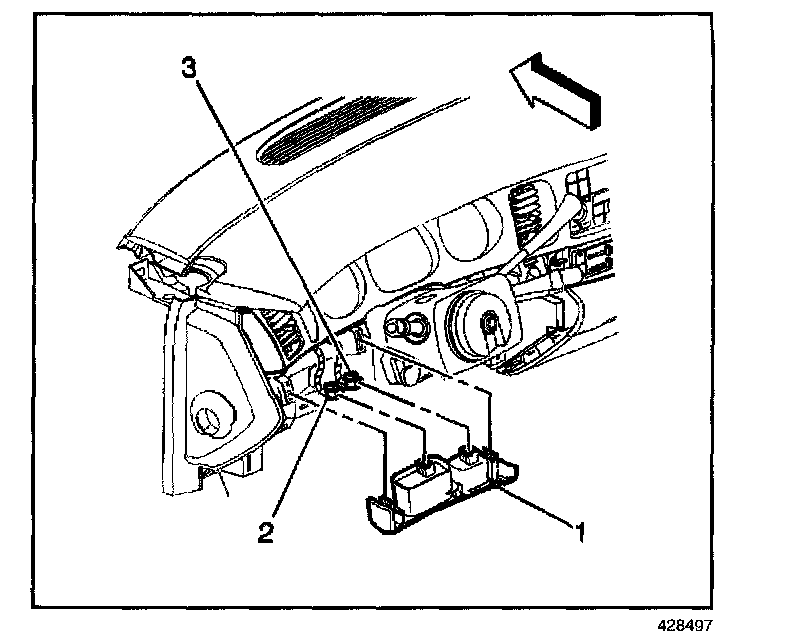

1. Remove the left IP trim plate. Refer to Trim Plate Replacement - IP Accessory Left.
2. Disconnect the electrical connector (3).

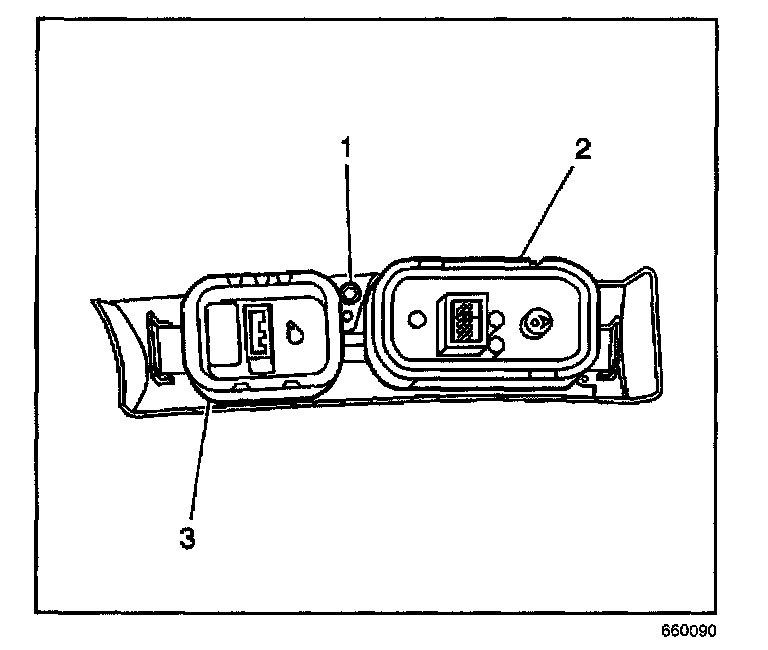

3. Remove the fastener (1).
4. Remove the HUD switch (3) from the left IP trim plate.

INSTALLATION PROCEDURE




1. Install the HUD switch (3) to the IP trim plate.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the fastener (1).

Tighten
Tighten the fastener (1) to 2 N.m (18 lb in).




3. Connect the electrical connector (3).
4. Install the IP trim plate. Refer to Trim Plate Replacement - IP Accessory Left.
