Head Up Display Module Replacement

REMOVAL PROCEDURE

CAUTION: Refer to SIR Handling Caution in Service Precautions.




1. Disable the SIR system. Refer to Disabling the SIR System in Restraint Systems.
2. Remove the windshield defroster grille. Refer to Defroster Grille Replacement (W/O HUD) or Defroster Grille Replacement (with HUD).
3. Remove the IP upper trim pad. Refer to Trim Pad Replacement - IP Upper (W/o HUD) or Trim Pad Replacement - IP Upper (with HUD).

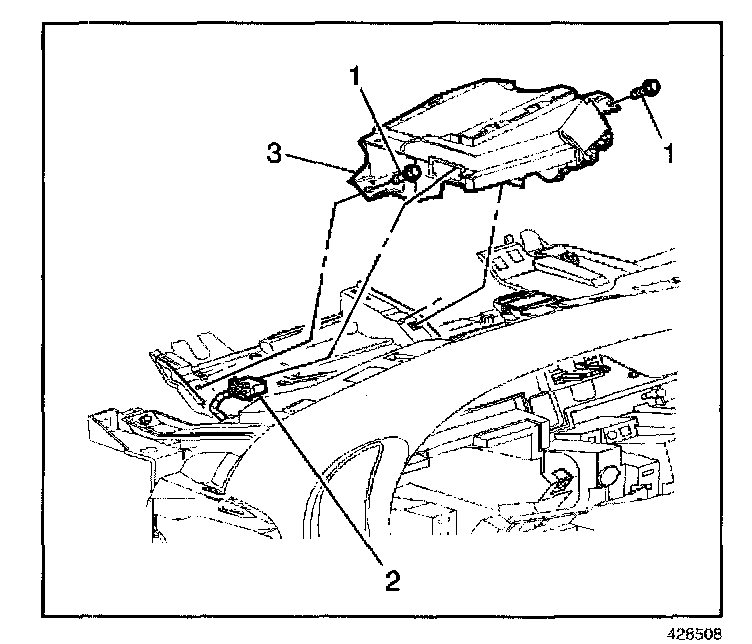

4. Remove the fasteners (1) from the HUD module (3) to the IP.
5. Lift the HUD module (3) from the IP.
6. Disconnect the electrical connector (2).

INSTALLATION PROCEDURE




1. Connect the electrical connector (2).
2. Install the lower HUD module (3) into the IP.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the fasteners (1).

Tighten
Tighten the fasteners to 2 N.m (18 lb in).

4. Install the IP upper trim pad. Refer to Trim Pad Replacement - IP Upper (W/O HUD) or Trim Pad Replacement - IP Upper (with HUD).
5. Install the windshield defroster grille. Refer to Defroster Grille Replacement (W/O HUD) or Defroster Grille Replacement (with HUD).
6. Enable the SIR system. Refer to Enabling the SIR System in Restraint Systems.
