Driver/Vehicle Information Display: Service and Repair

DRIVER INFORMATION CENTER SWITCH REPLACEMENT

REMOVAL PROCEDURE

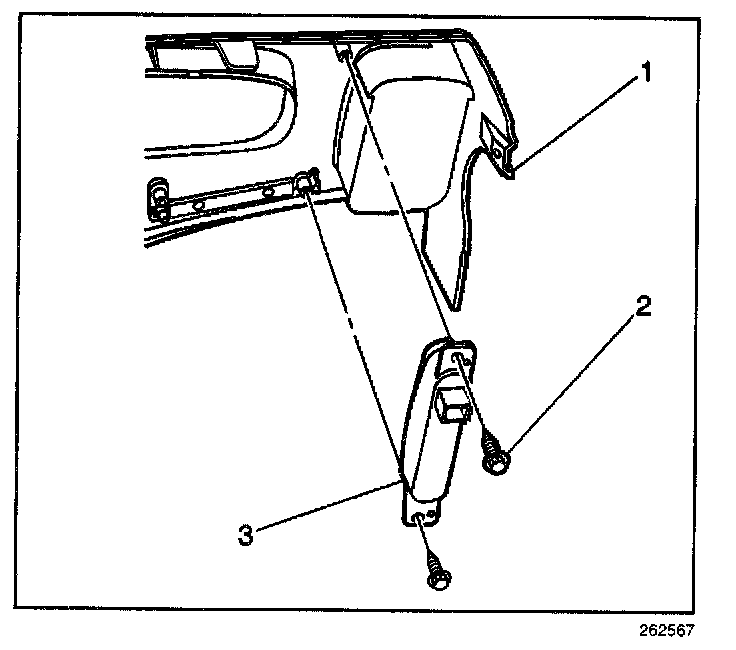

1. Remove the IP cluster trim plate (1).
2. Disconnect the electrical connector.
3. Remove the fasteners (2) from the driver information switch.
4. Remove the driver information center switch (3).

INSTALLATION PROCEDURE




1. Install the driver information center switch (3) to the IP cluster trim plate (1).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the fasteners (2).

Tighten
Tighten the fasteners to 2 N.m (18 lb in).

3. Connect the electrical connector.
4. Install the IP cluster trim plate (1).
