Driver/Vehicle Information Display: Diagrams

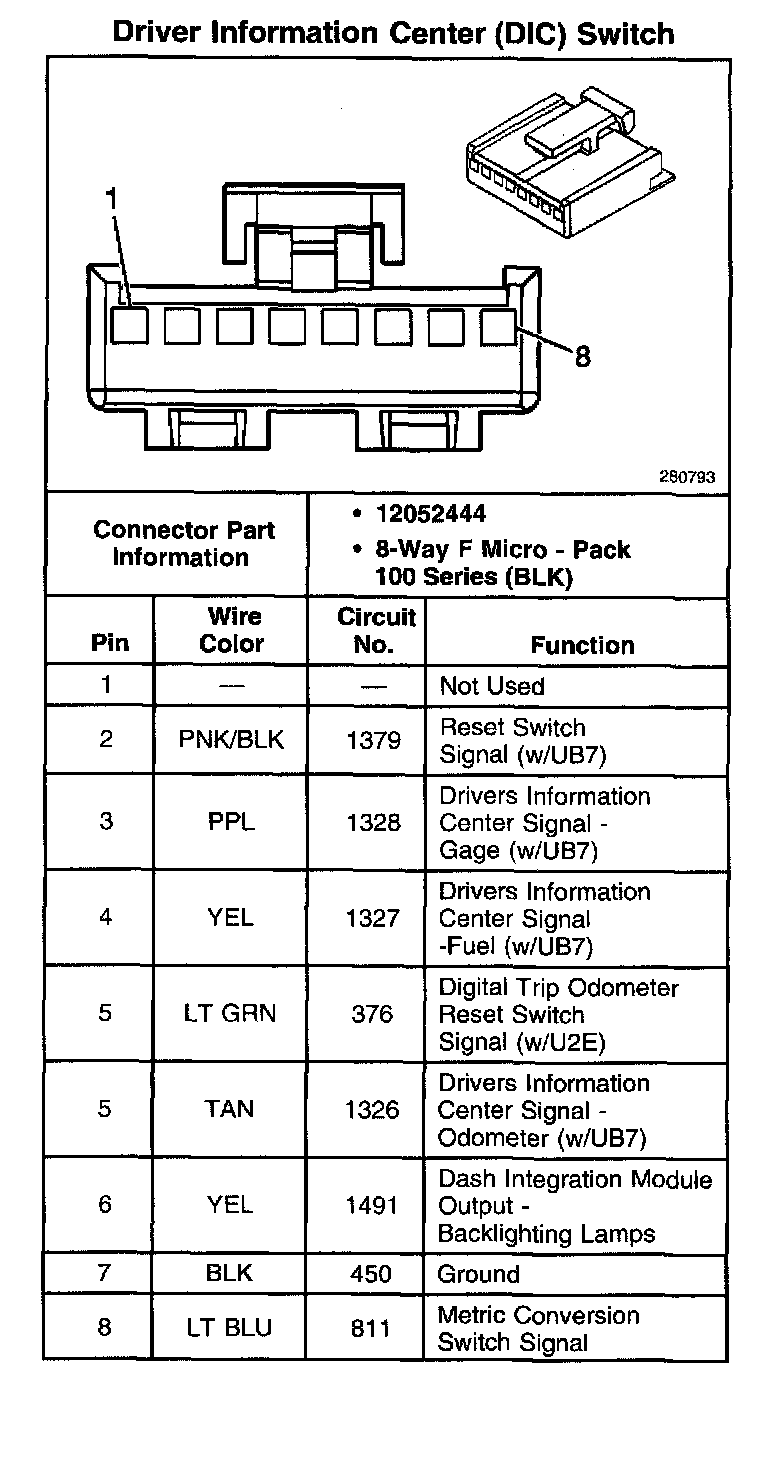

Driver Information Center (DIC) Switch:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
