With DO7 Rear Air Duct

REMOVAL PROCEDURE




1. Remove the left side sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gauges and Warning Indicators.
2. Remove the right side sound insulator. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gauges and Warning Indicators.
3. Remove the auxiliary air distribution duct adapter.

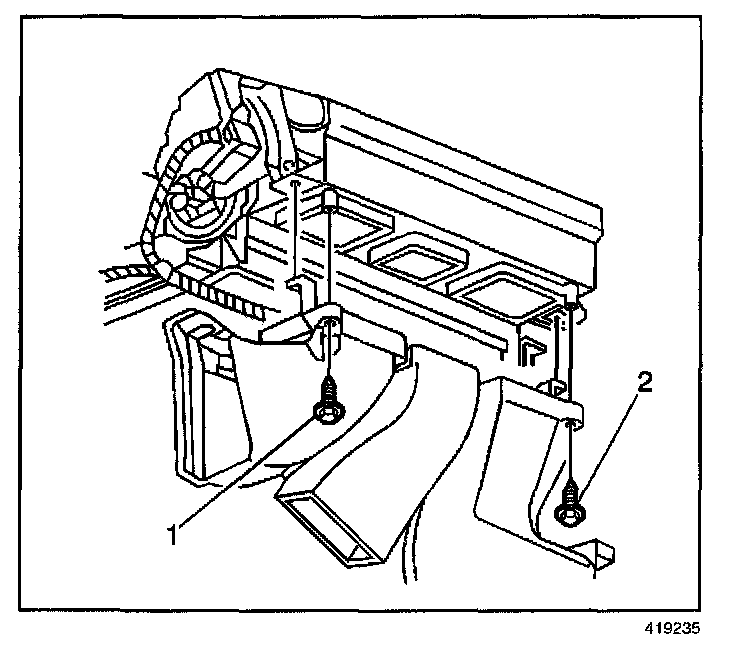

4. Remove the air distributor duct screws (1,2). Due to the difficulty in the removal of the right side screw (2), it will not be necessary to install upon reassembly.

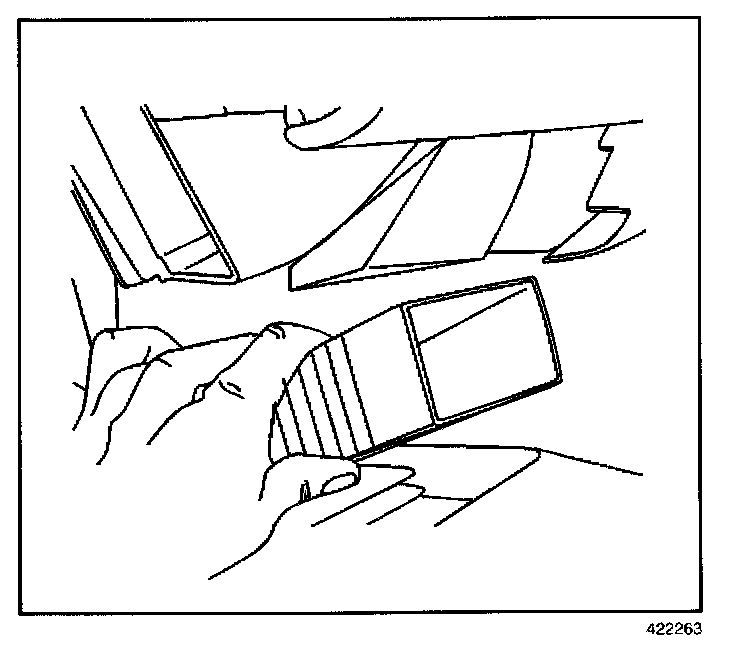

5. Remove the air distribution duct.

INSTALLATION PROCEDURE

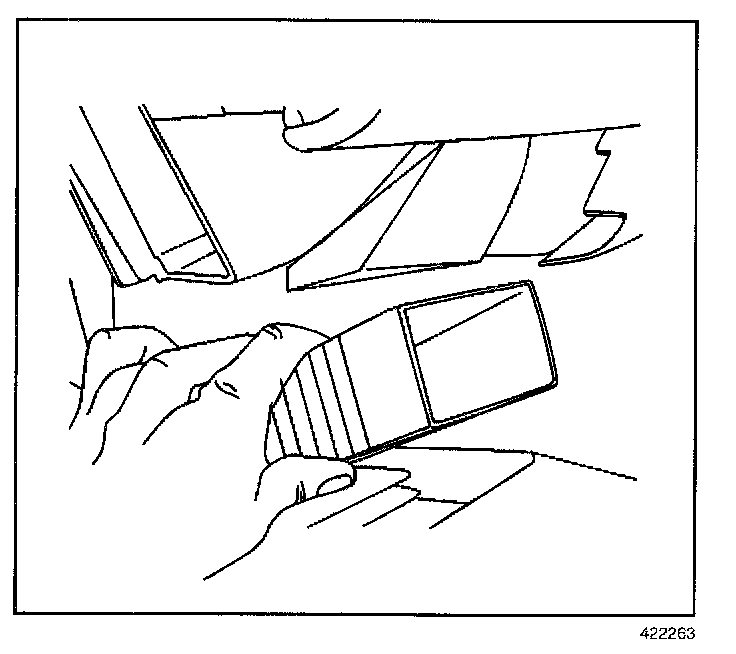

1. Install the air distribution duct

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the left screw (1). Ensure that the right tab is seated property.

Tighten
Tighten the screw to 1.4 N.m (12 lb in).




3. Install the auxiliary air distribution duct adapter.
4. Install the left side sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gauges and Warning Indicators.
5. Install the right side sound insulator. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gauges and Warning Indicators.
