Air Temperature Door Replacement - Left

REMOVAL PROCEDURE




1. Remove the HVAC Module.
2. Remove the mode actuator.
3. Remove the recirculation actuator.
4. Remove the right temperature actuator.
5. Remove the left temperature actuator.
6. Remove the fasteners that retain the mode actuator bracket.
7. Remove the mode actuator bracket.
8. Remove the upper module case screws.

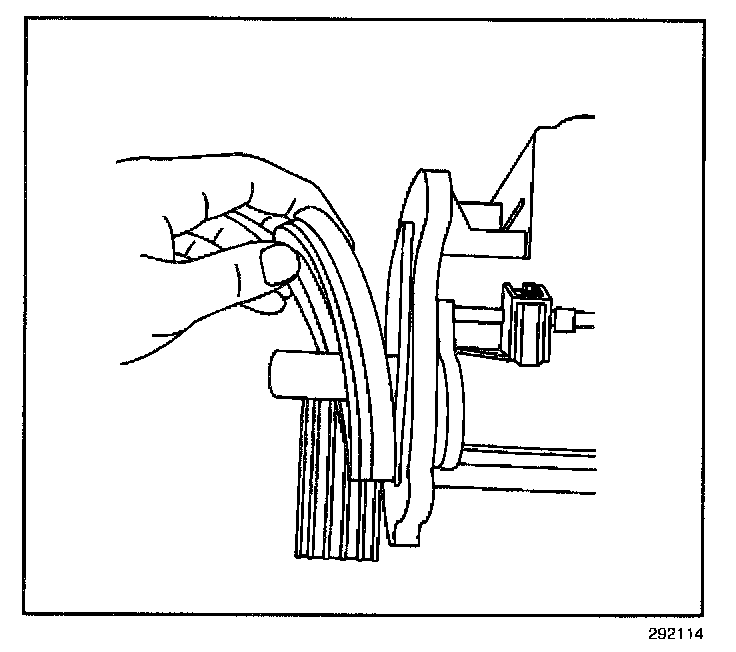

9. Remove the foam at the heater inlet.

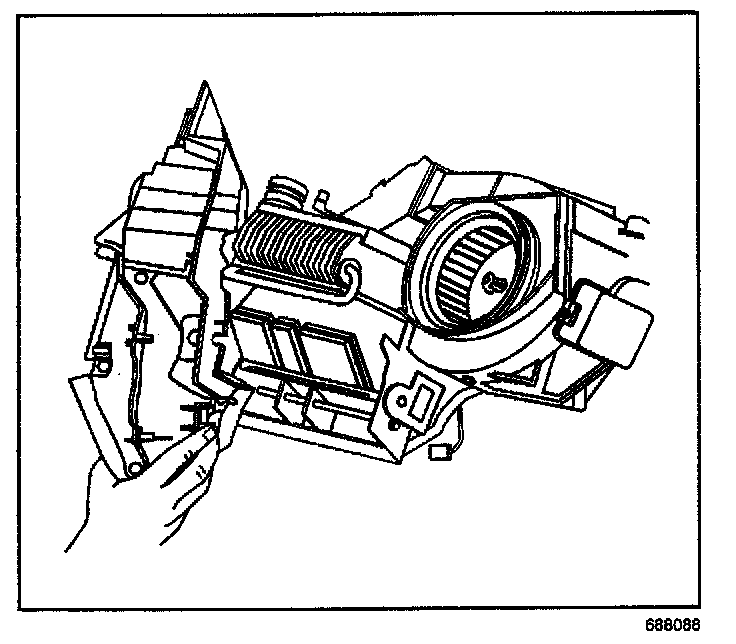

10. Remove the upper case.

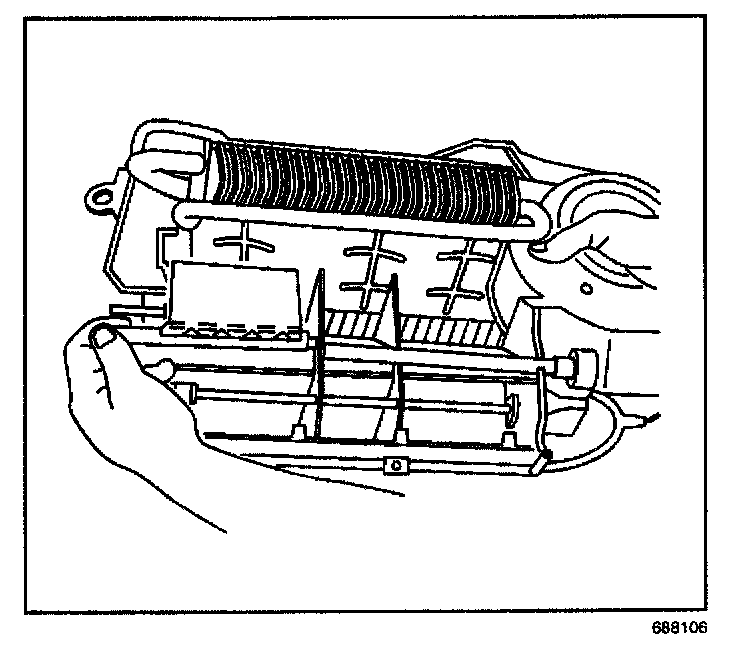

11. Remove the left air temperature door.

INSTALLATION PROCEDURE




1. Install the left air temperature door.




2. Install the upper module case.
3. Install the module case screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 1.4 N.m (12 lb in).




4. Reapply the foam at the heater inlet.
5. Install the mode actuator and bracket.
6. Install the left temperature actuator.
7. Install the right temperature actuator.
8. Install the recirculation actuator.
9. Install the HVAC module.
