Air Temperature Door Replacement

REMOVAL PROCEDURE




1. Remove the HVAC Module.
2. Remove the mode actuator.
3. Remove the recirculation actuator.
4. Remove the right temperature actuator. Refer to Air Temperature Actuator Replacement - Right in HVAC Systems - Automatic.
5. Remove the left temperature actuator. Refer to Air Temperature Actuator Replacement - Left in HVAC Systems - Automatic.
6. Remove the fasteners that retain the mode actuator bracket.
7. Remove the mode actuator bracket.
8. Remove the upper module case screws.

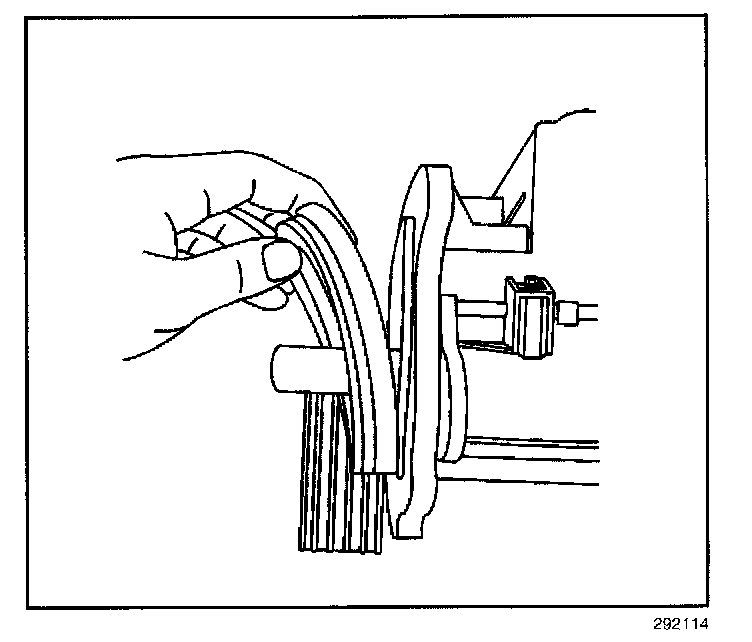

9. Remove the foam at the heater inlet.

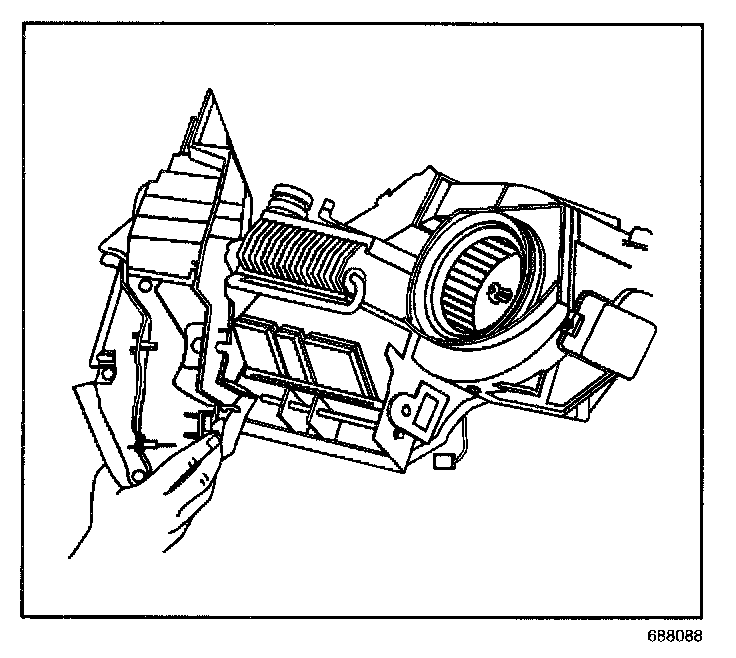

10. Remove the upper case.

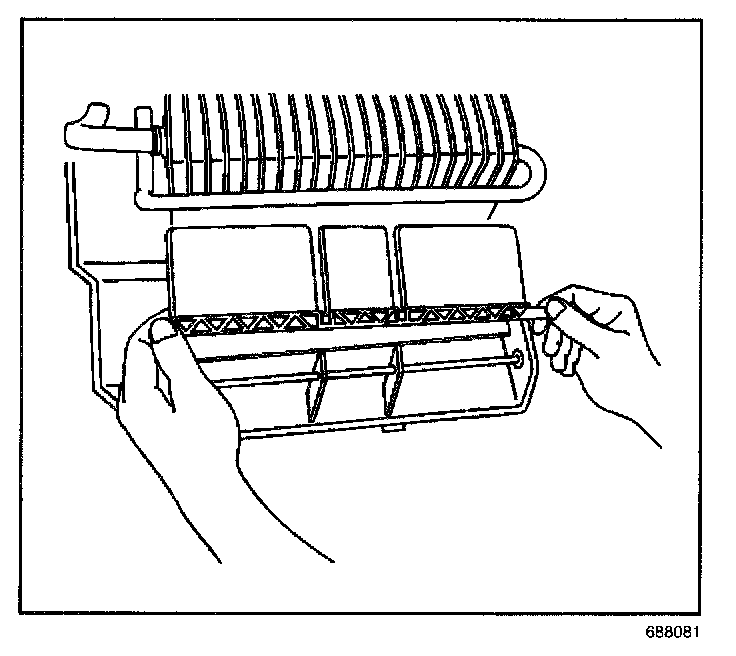

11. Remove the air temperature door.

INSTALLATION PROCEDURE




1. Install the air temperature door.




2. Install the upper module case.
3. Install the module case screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 1.4 N.m (12 lb in).

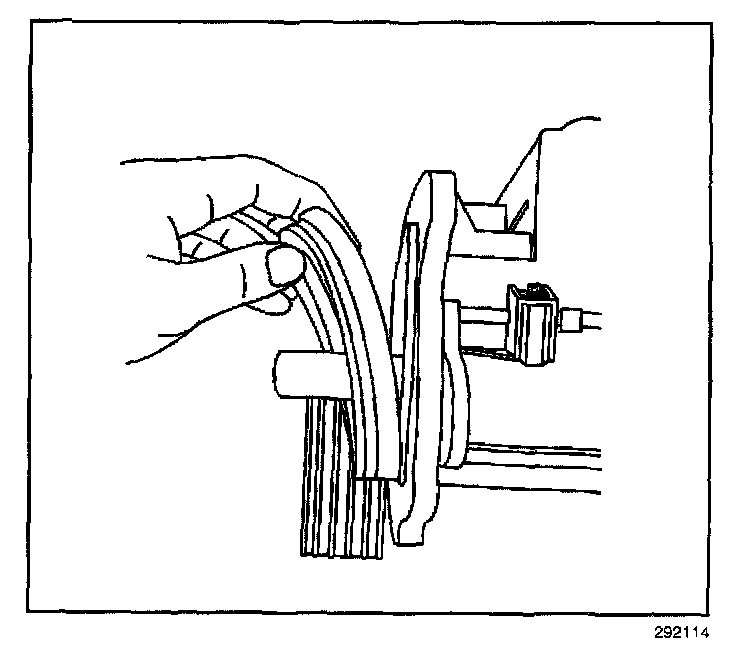

4. Reapply the foam at the heater inlet.
5. Install the mode actuator and bracket.
6. Install the left temperature actuator. Refer to Air Temperature Actuator Replacement - Left in HVAC Systems Automatic.
7. Install the right temperature actuator. Refer to Air Temperature Actuator Replacement - Right in HVAC Systems - Automatic.
8. Install the recirculation actuator.
9. Install the HVAC module.
