Home >> Buick >> 2001 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Harness >> Upper Side Of Engine

Upper Side Of Engine

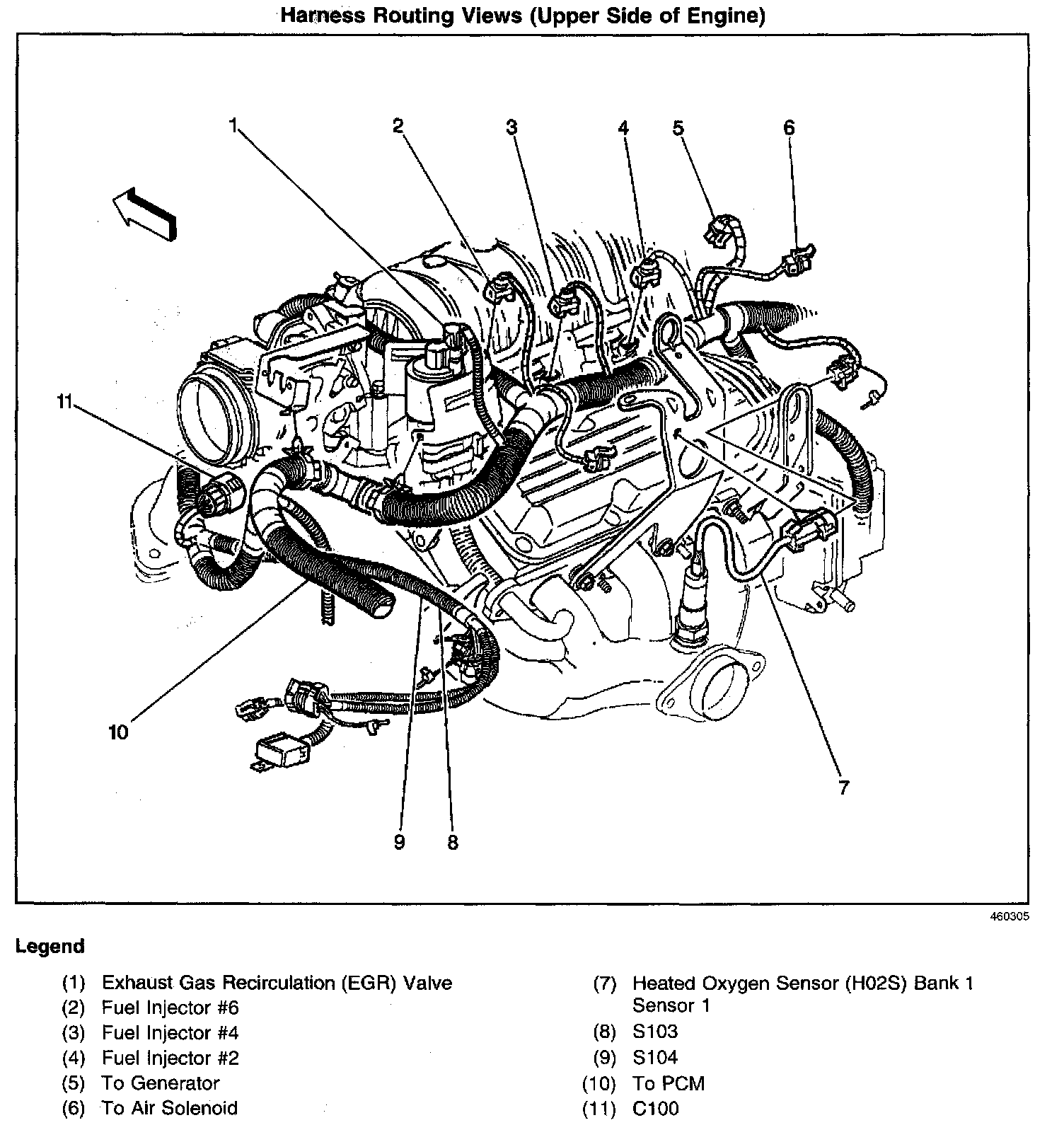

Harness Routing Views (Upper Side Of Engine):
