Home >> Buick >> 2001 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

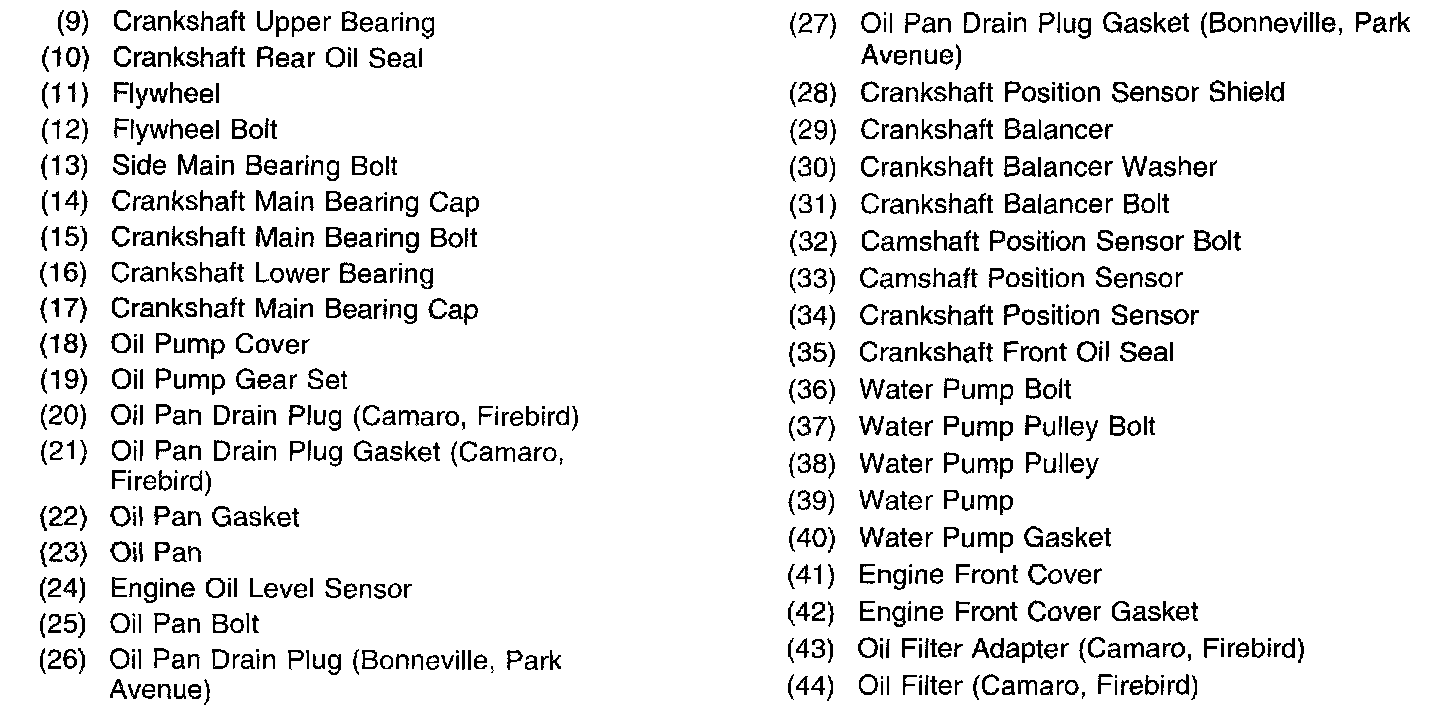

Engine Block and Components

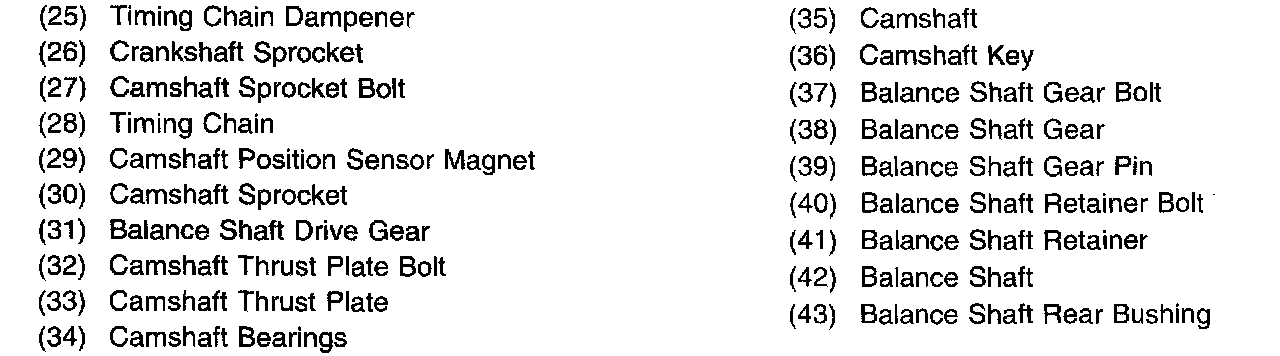

Crankshaft and Components

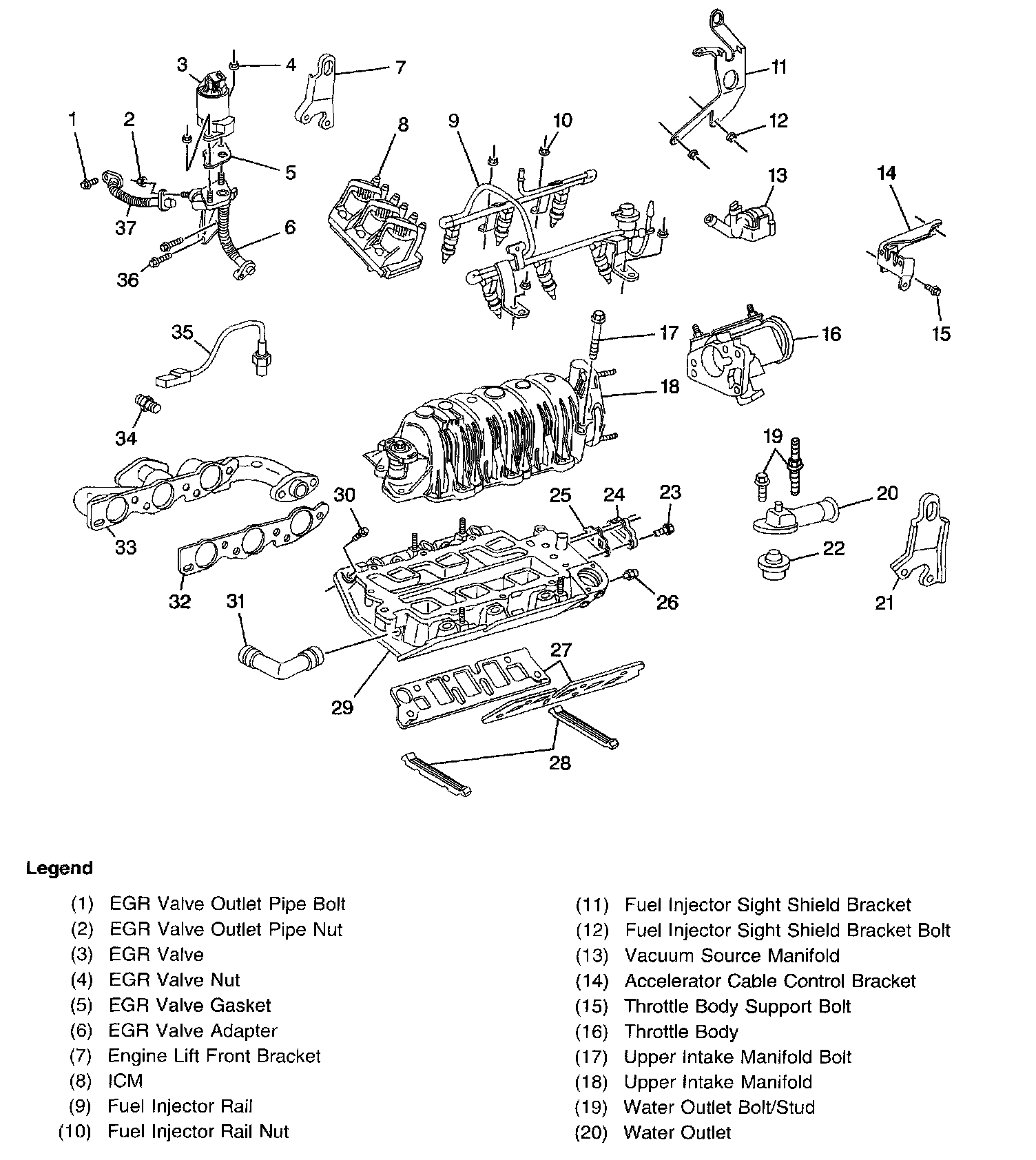

Intake Manifold and Components

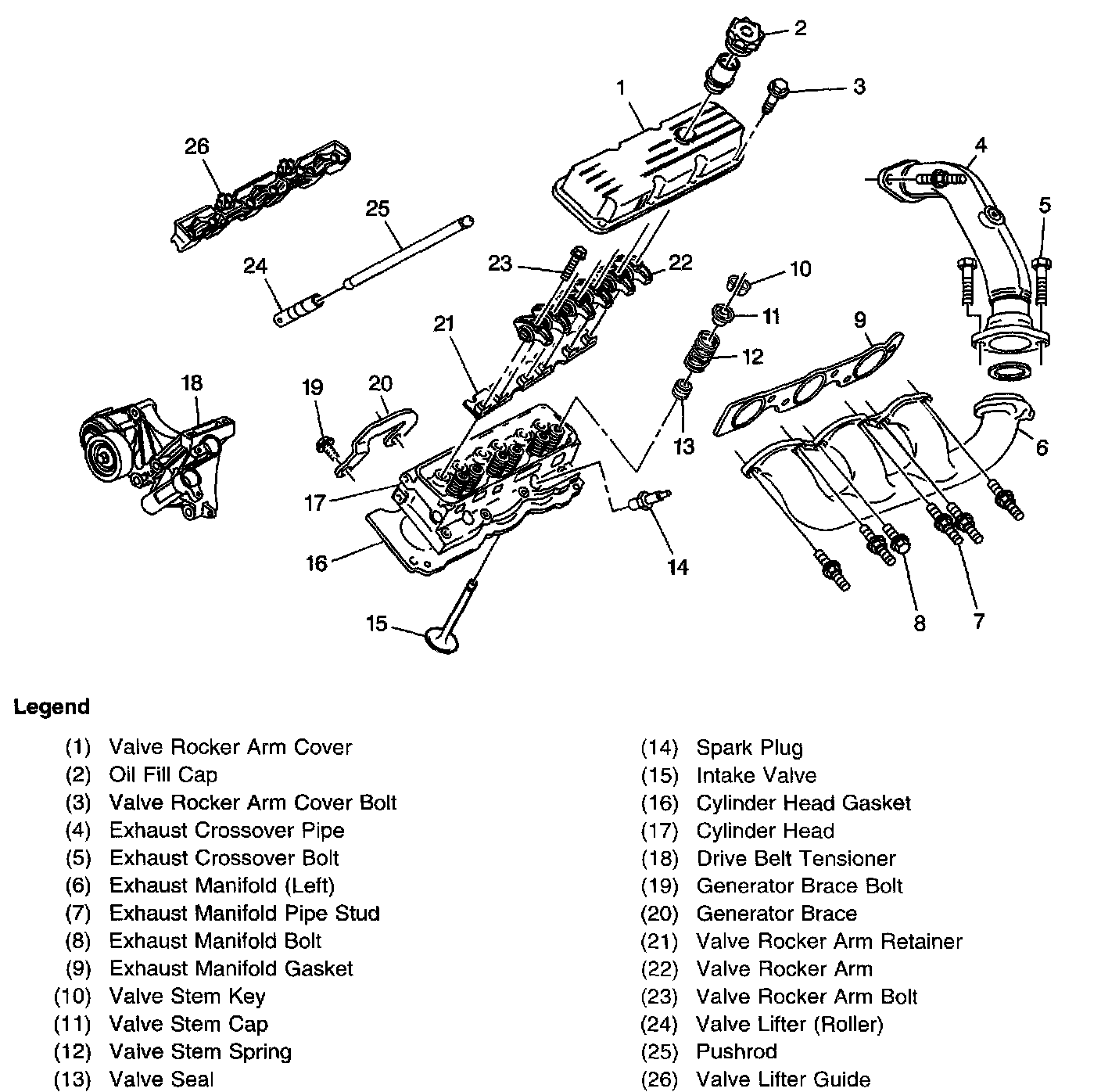

Cylinder Head and Components
