Wiper Washer Switch and Fuse

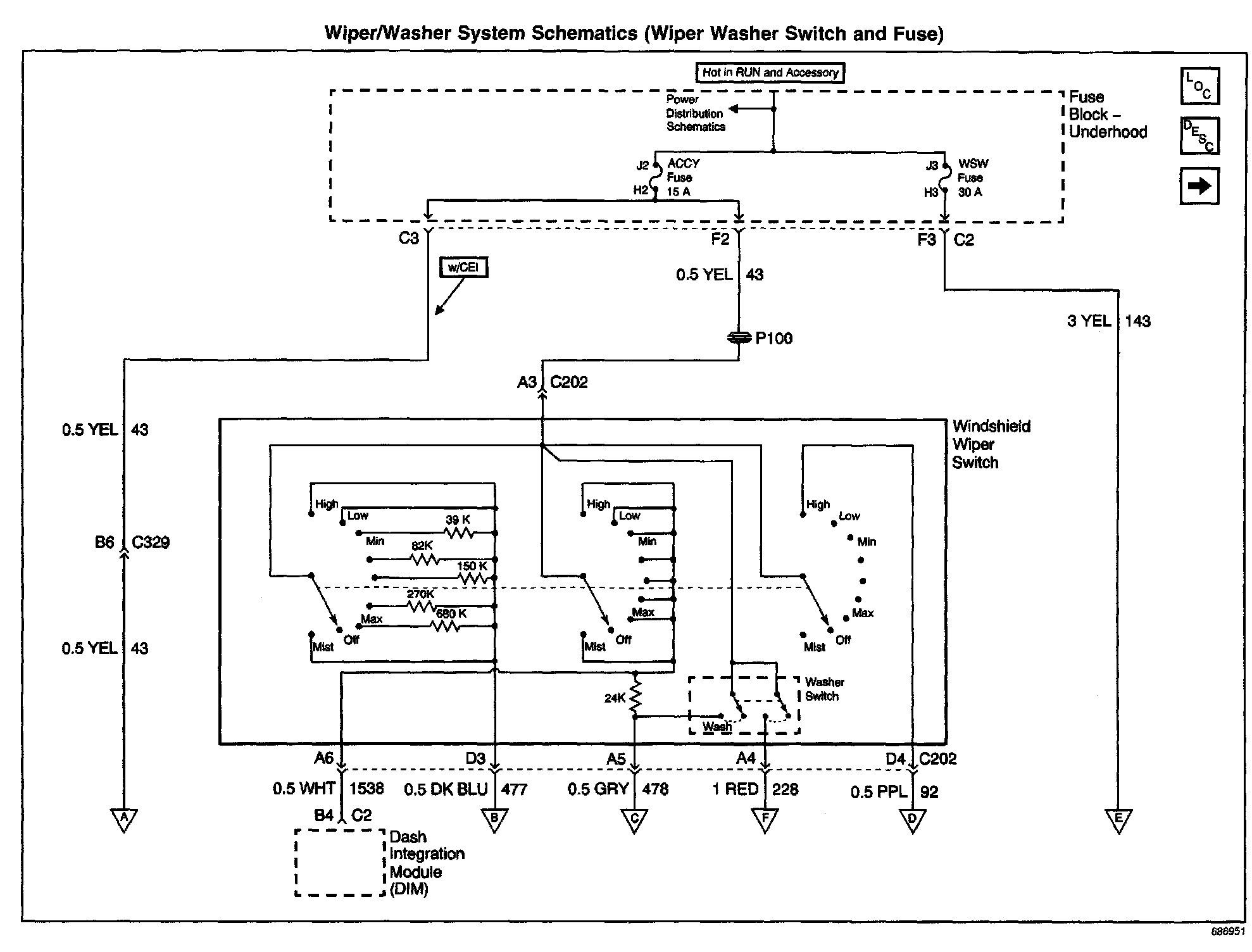

Wiper/Washer System Schematics: Wiper Washer Switch And Fuse:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
