Home >> Buick >> 2001 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seats Schematics >> LH Power Recline Switch And Motor

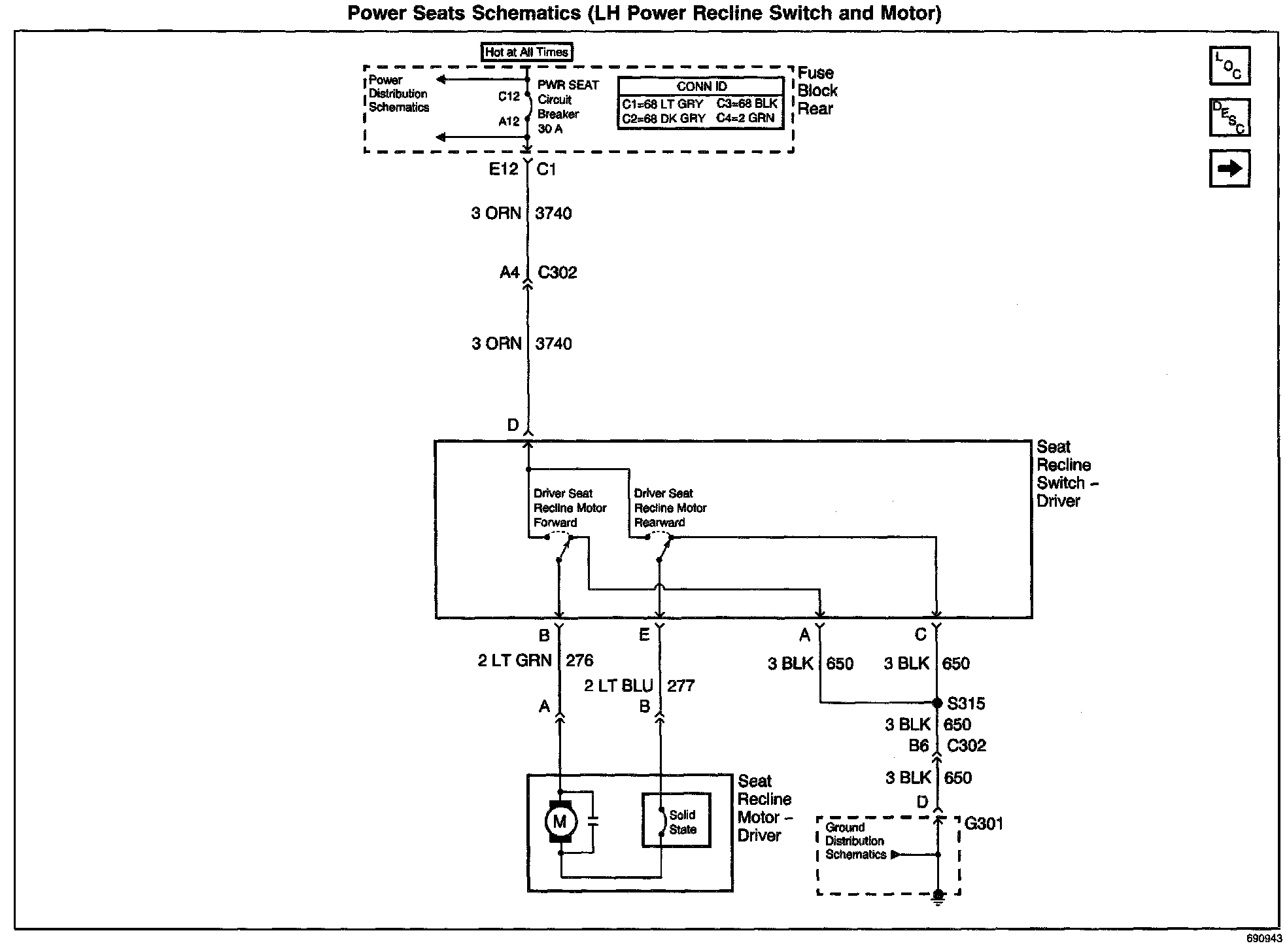

LH Power Recline Switch And Motor

Power Seats Schematics: LH Power Recline Switch And Motor:
