Home >> Buick >> 2001 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Heated Seats Schematics >> LH Front Heated Seat Switch

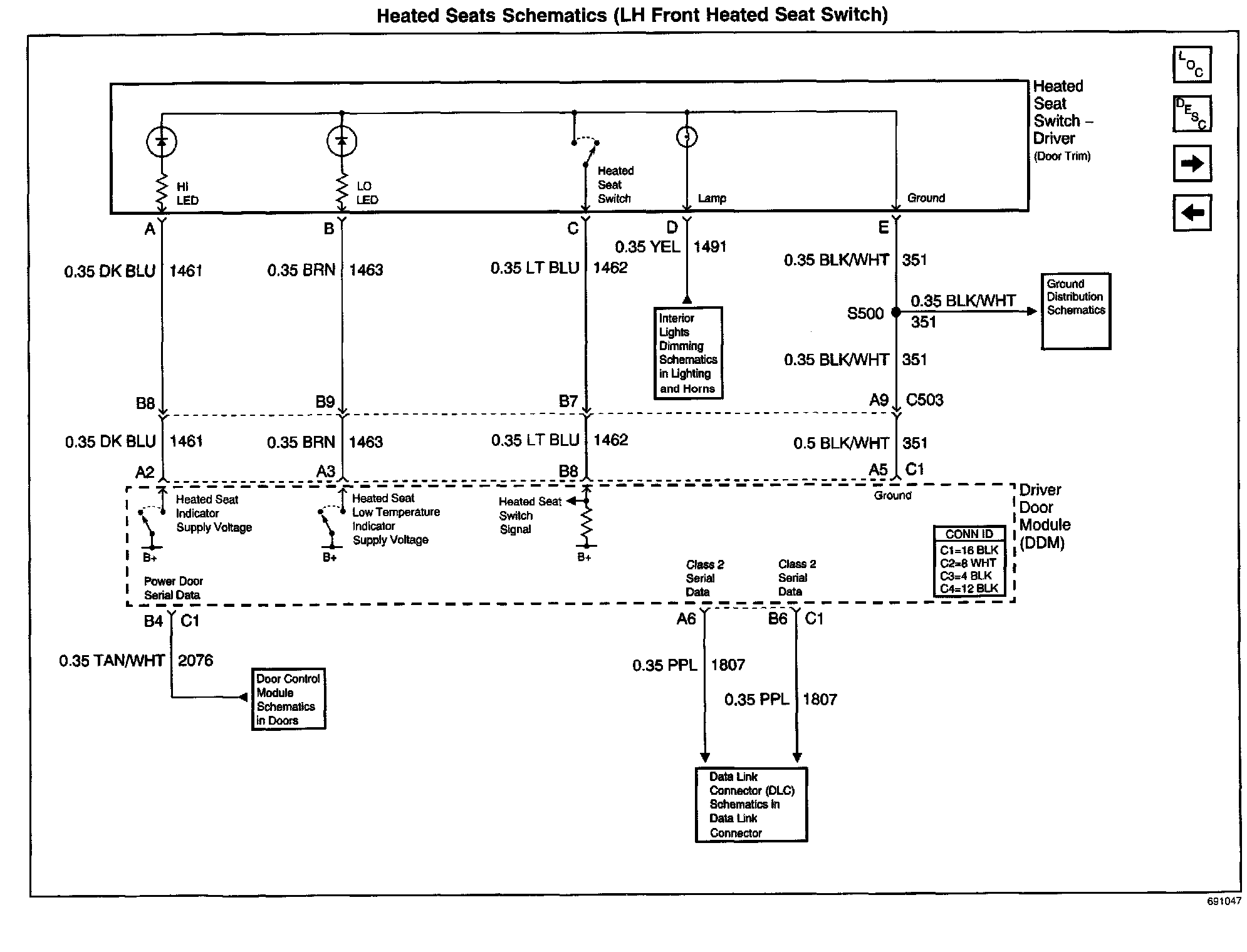

LH Front Heated Seat Switch

Heated Seats Schematics: LH Front Heated Seat Switch:
