Home
>>
Buick
>>
2001
>>
LeSabre V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
Defogger Schematics
Defogger Schematics

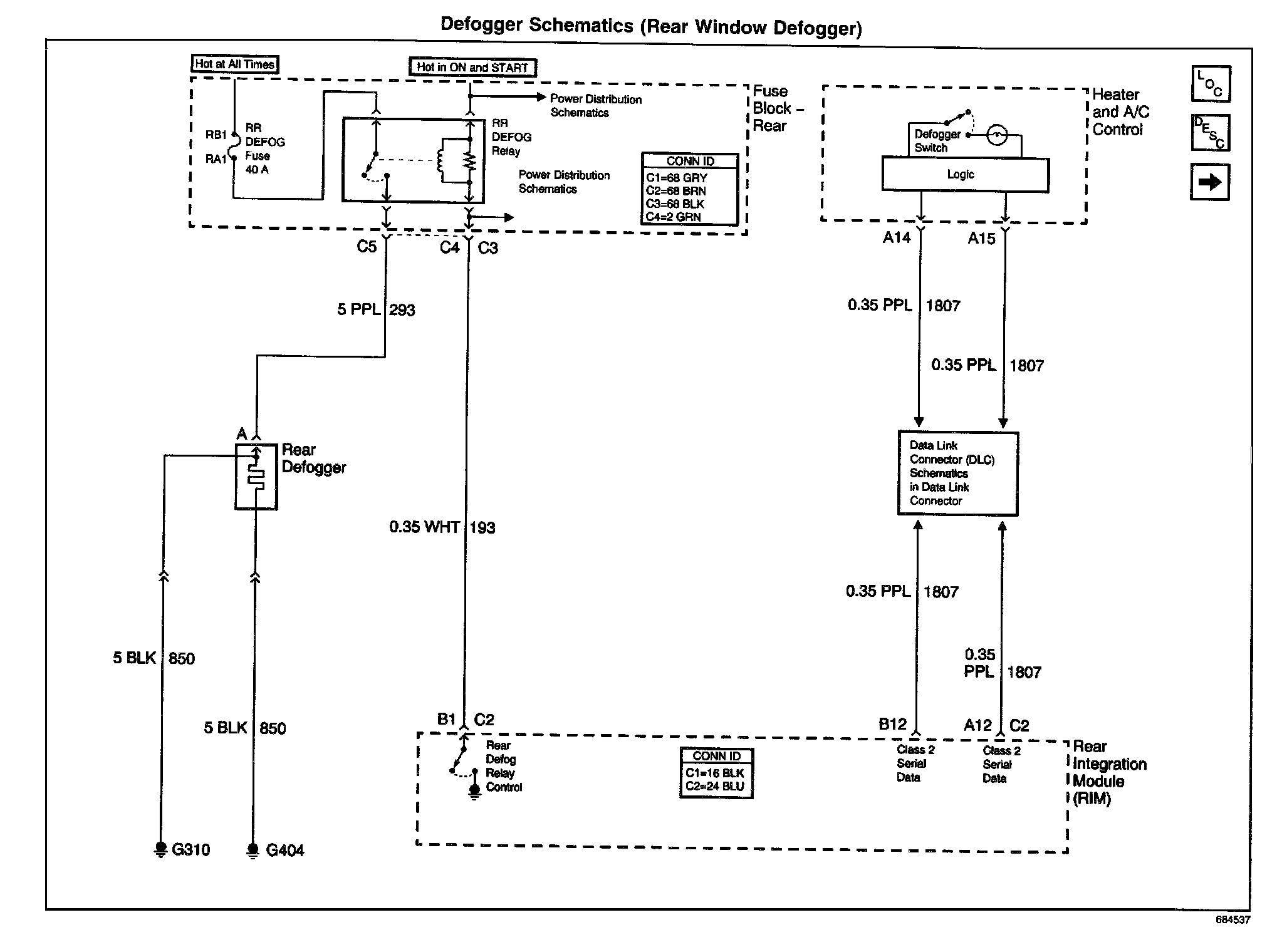

Defogger Schematics: Rear Window Defogger:

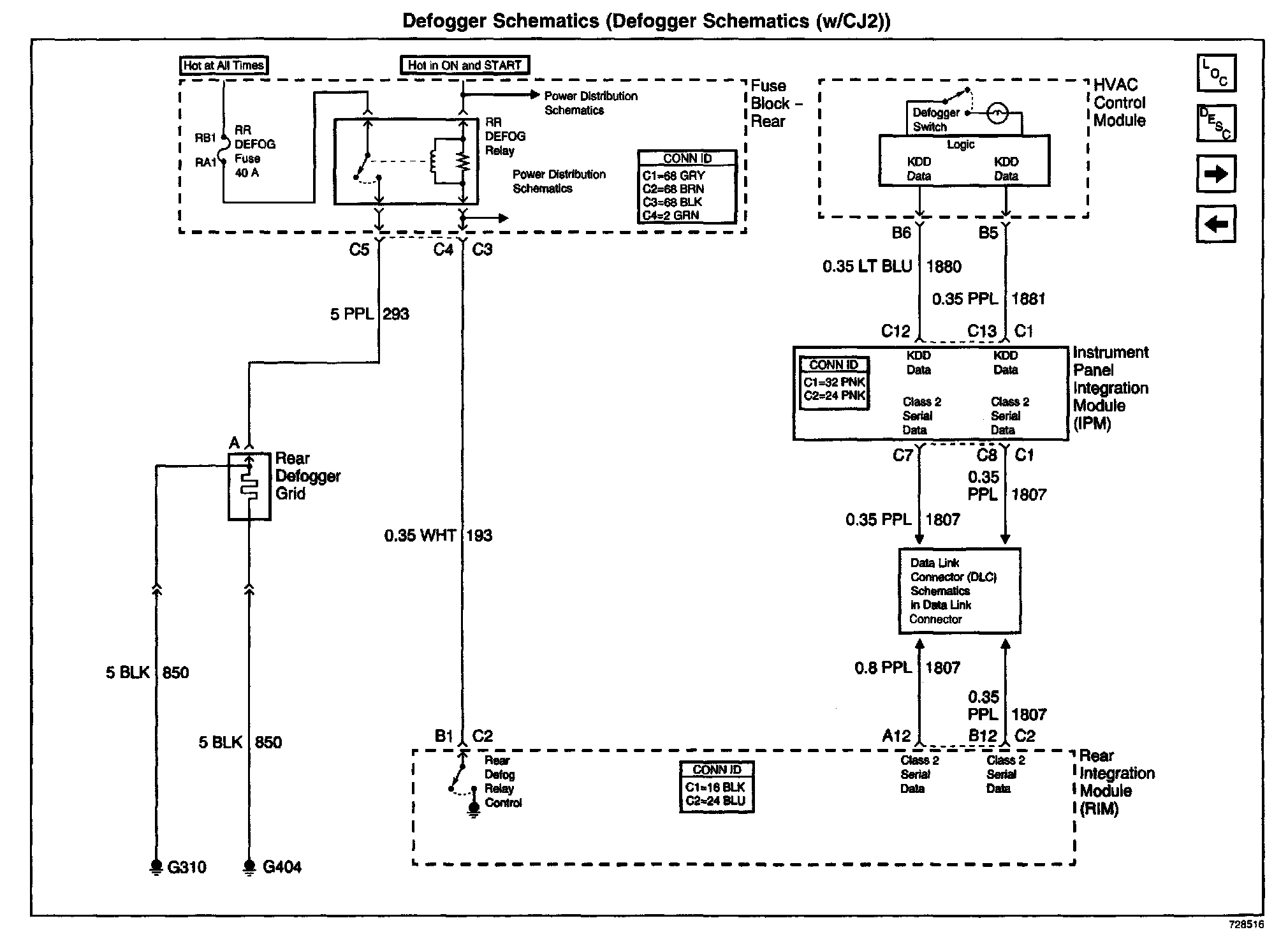

Defogger Schematics: Defogger Schematics (W/CJ2):
