Home >> Buick >> 2001 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram >> Door Courtesy Lamp - LF

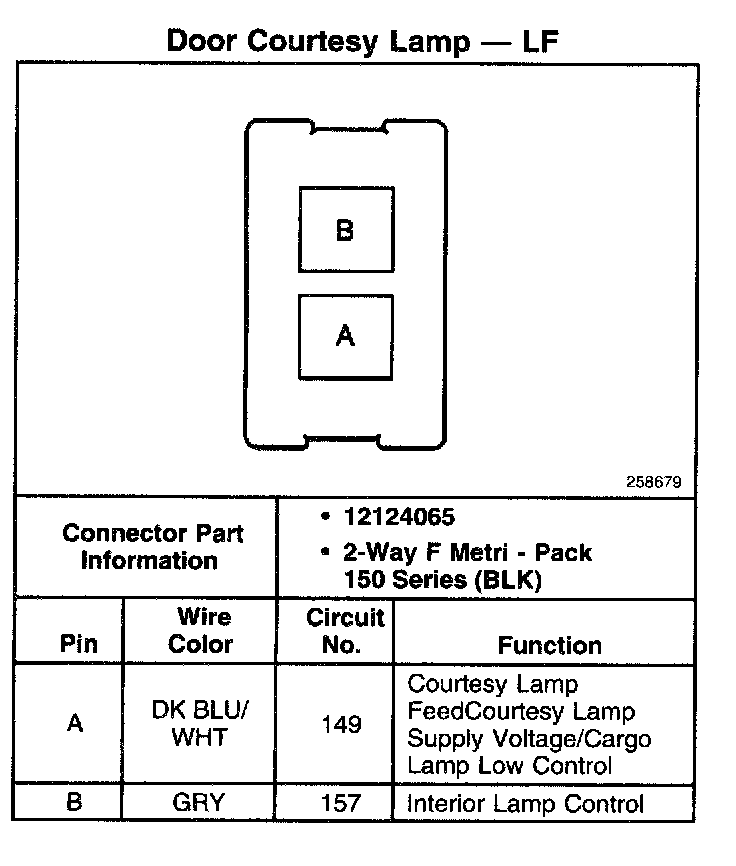

Door Courtesy Lamp - LF

Door Courtesy Lamp - LF:
