Home
>>
Buick
>>
2001
>>
LeSabre V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ambient Temperature Sensor / Switch HVAC
>>

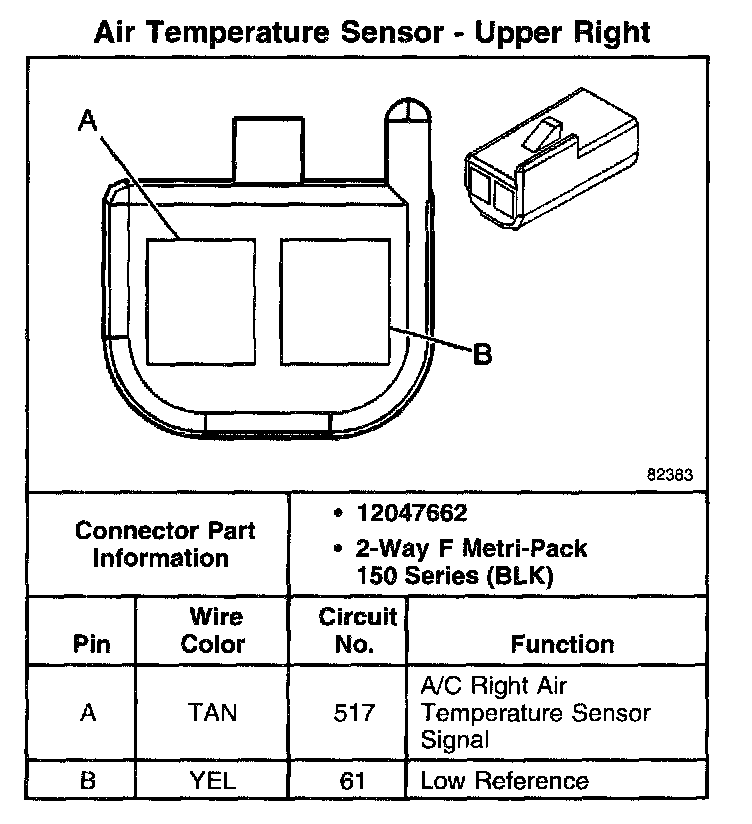

Air Temperature Sensor - Upper Right
Air Temperature Sensor - Upper Right
Air Temperature Sensor - Upper Right:
