Brake Pressure Modulator Valve (BPMV) Bracket Replacement
Brake Pressure Modulator Valve (BPMV) Bracket ReplacementRemoval Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the left front wheel.
3. Remove the left front wheelhouse extension.
Important: The area around the Electronic Brake Control Module (EBCM)/Brake Pressure Modulator (BPMV) must be free from loose dirt to prevent contamination of disassembled ABS components.
4. Thoroughly wash all contaminants from around the EBCM/BPMV.
5. Remove the 2 BPMV bracket nuts (2).
6. Remove the 3 BPMV bracket to frame bolts (2).

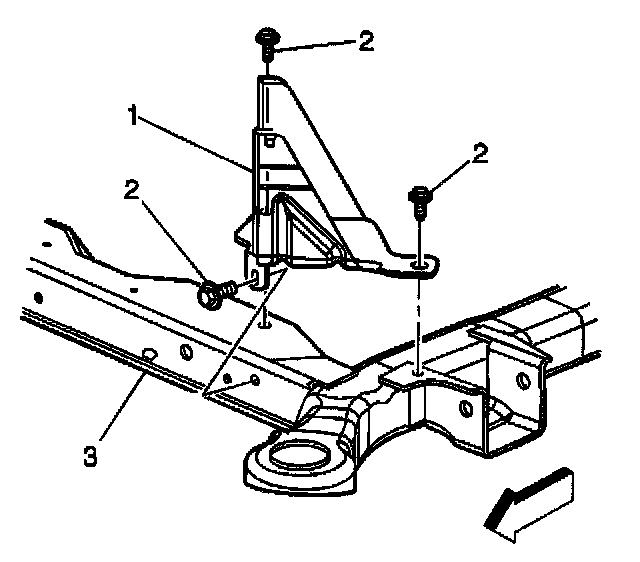

7. Remove the BPMV bracket (1) from the frame (3).
Installation Procedure
1. Install the brake pressure modulator (BPMV) bracket (1) to the frame (3).
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the 3 BPMV bracket to frame bolts (2).
^ Tighten the 3 bolts to 12 Nm (106 inch lbs.).
Important: Make sure that all 3 rubber isolators are installed on the BPMV. The isolators protect the Electronic Brake Control Module (EBCM)/BPMV assembly from vehicle vibrations.

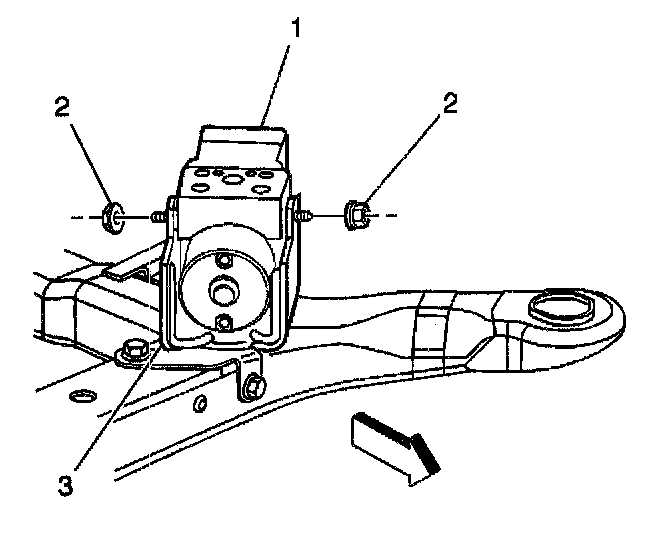

3. Install the EBCM/BPMV assembly (1) to the BPMV bracket (3).
4. Install the 2 BPMV bracket nuts (2).
^ Tighten the 2 nuts to 10 Nm (89 inch lbs.).
5. Install the left front wheelhouse extension.
6. Install the left front wheel. in Tire and Wheels.
7. Lower the vehicle. Refer to Vehicle Lifting.
