Buick
>>
2001
>>
LeSabre V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Seats Schematics
>>
RH Front Heated Seat Module
RH Front Heated Seat Module

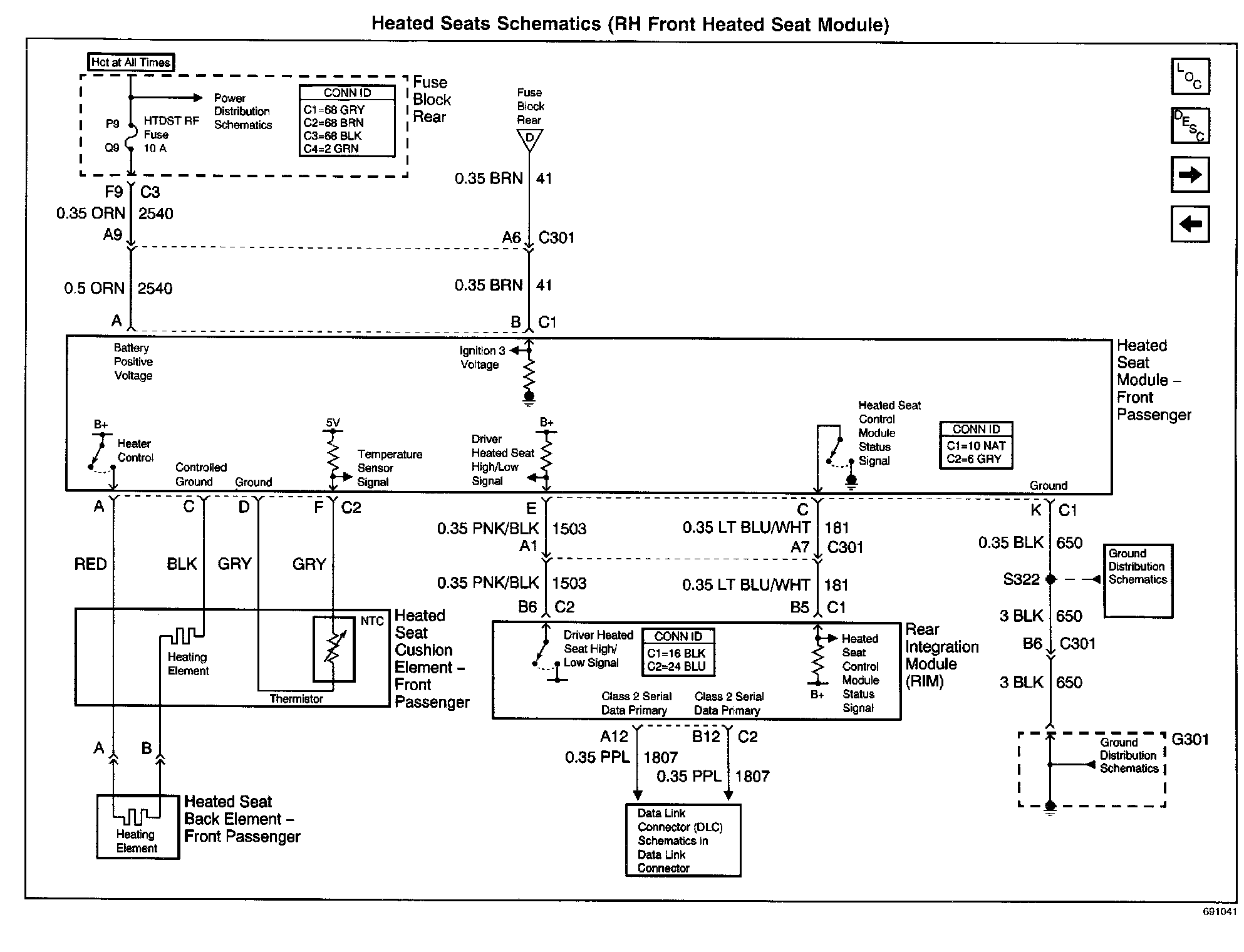

Heated Seats Schematics: RH Front Heated Seat Module:
