Wheelhouse Extension Replacement - Rear

Wheelhouse Extension Replacement - Rear

Removal Procedure

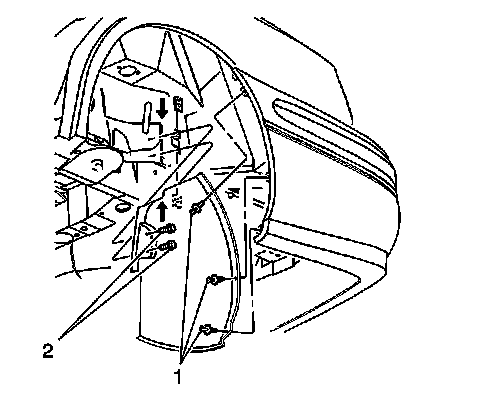

1. Remove the two screws (2) retaining the rear wheelhouse extension to the vehicle.
2. Remove the three push-in retainers (1) retaining the rear wheelhouse extension to the vehicle.
3. Remove the rear wheelhouse extension from the vehicle.

Installation Procedure




1. Position the rear wheelhouse extension to the vehicle.
2. Install the three push-in retainers (1) in order to retain the rear wheelhouse extension to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the two screws (1) in order to retain the rear wheelhouse extension to the vehicle.

Tighten the screws to 2 N.m (18 lb in).
