Wheelhouse Extension Replacement

Wheelhouse Extension Replacement

Removal Procedure

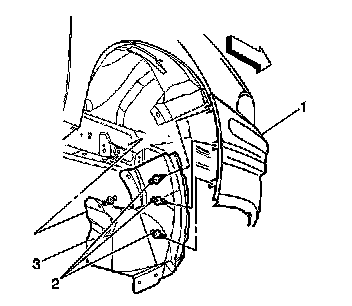

1. Remove the push-in retainers (2) from the wheelhouse extension (3).
2. Remove the wheelhouse extension from the vehicle.

Installation Procedure




1. Install the front wheelhouse extension (3) to the vehicle.
2. Install the push-in retainers (2) to the wheelhouse extension (3).
