Front Bumper Shock Absorber: Service and Repair

Front Bumper Fascia Energy Absorber Replacement

Removal Procedure




1. Remove the front bumper fascia.

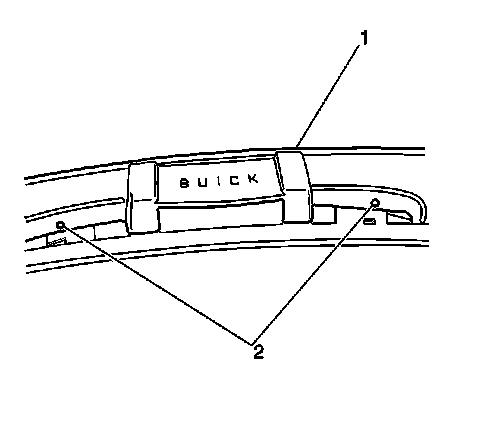

2. Using a square drive bit, remove the fasteners (2).
3. Remove the energy absorber from the fascia.

Installation Procedure




1. Align the energy absorber to the front bumper fascia.
2. Install the fasteners (2).
3. Install the front bumper fascia.
