1-2 Shift Solenoid Valve Replacement

1-2 SHIFT SOLENOID VALVE REPLACEMENT

Removal Procedure

1. Remove the case side cover. Control Valve Body Cover Replacement

2. Disconnect the 1-2 shift solenoid electrical connector.

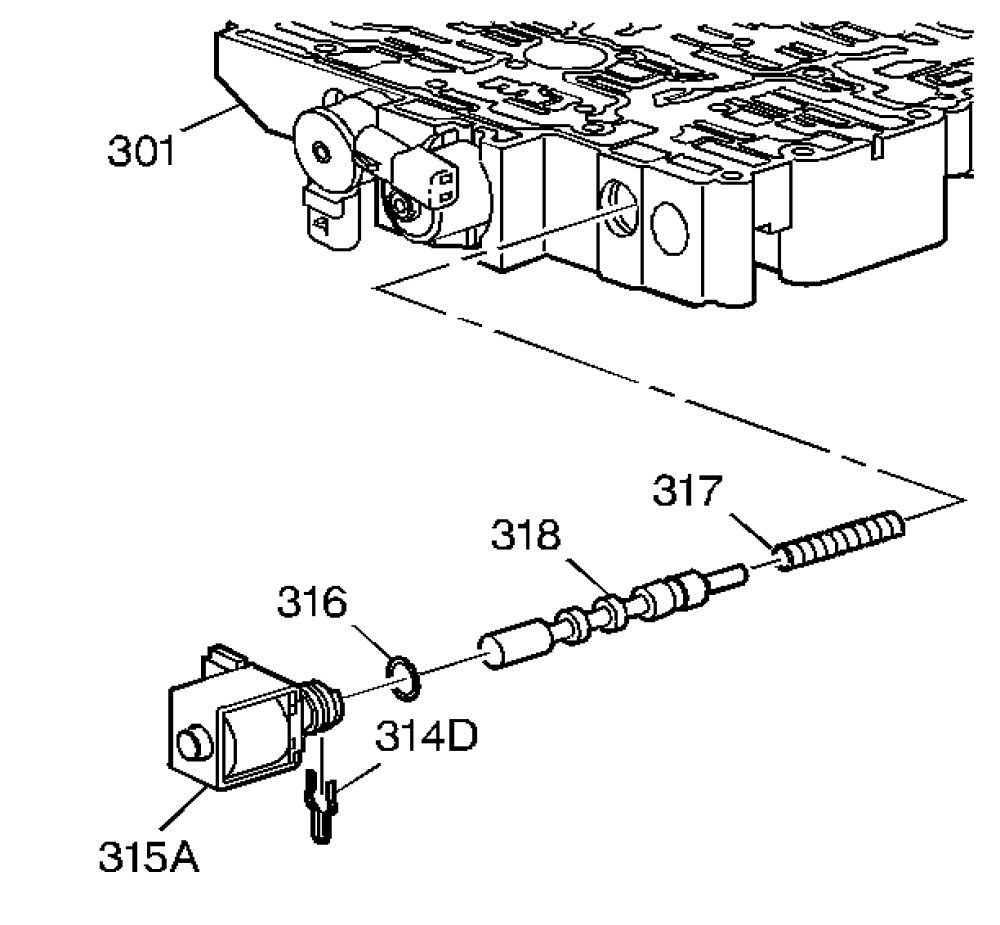

3. Remove the 1-2 shift solenoid (315A).

Installation Procedure






1. Install the 1-2 shift solenoid (315A).

2. Connect the 1-2 shift solenoid electrical connector.

3. Install the case side cover. Control Valve Body Cover Replacement

Important: It is recommended that transmission adaptive pressure (TAP) information be reset. Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, The ECM, PCM or TCM will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.

4. Reset the TAP values. Adapt Function
