Fuse Block-Underhood - C1
Fuse Block-Underhood - C1

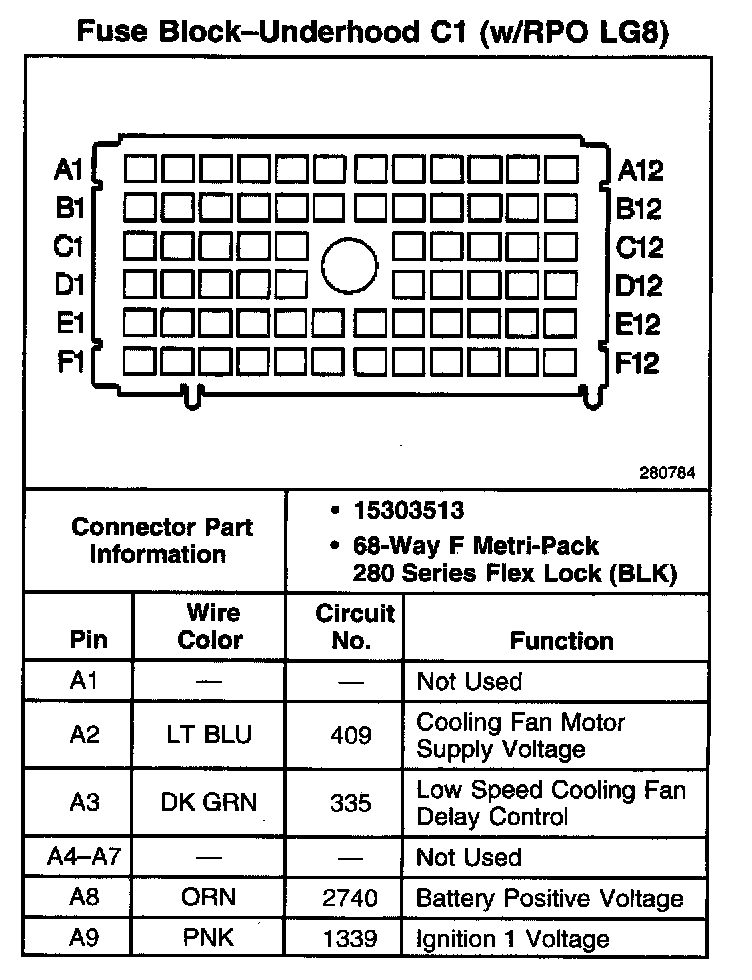

Fuse Block-Underhood C1 (W/RPO LG8) (Part 1 Of 2):

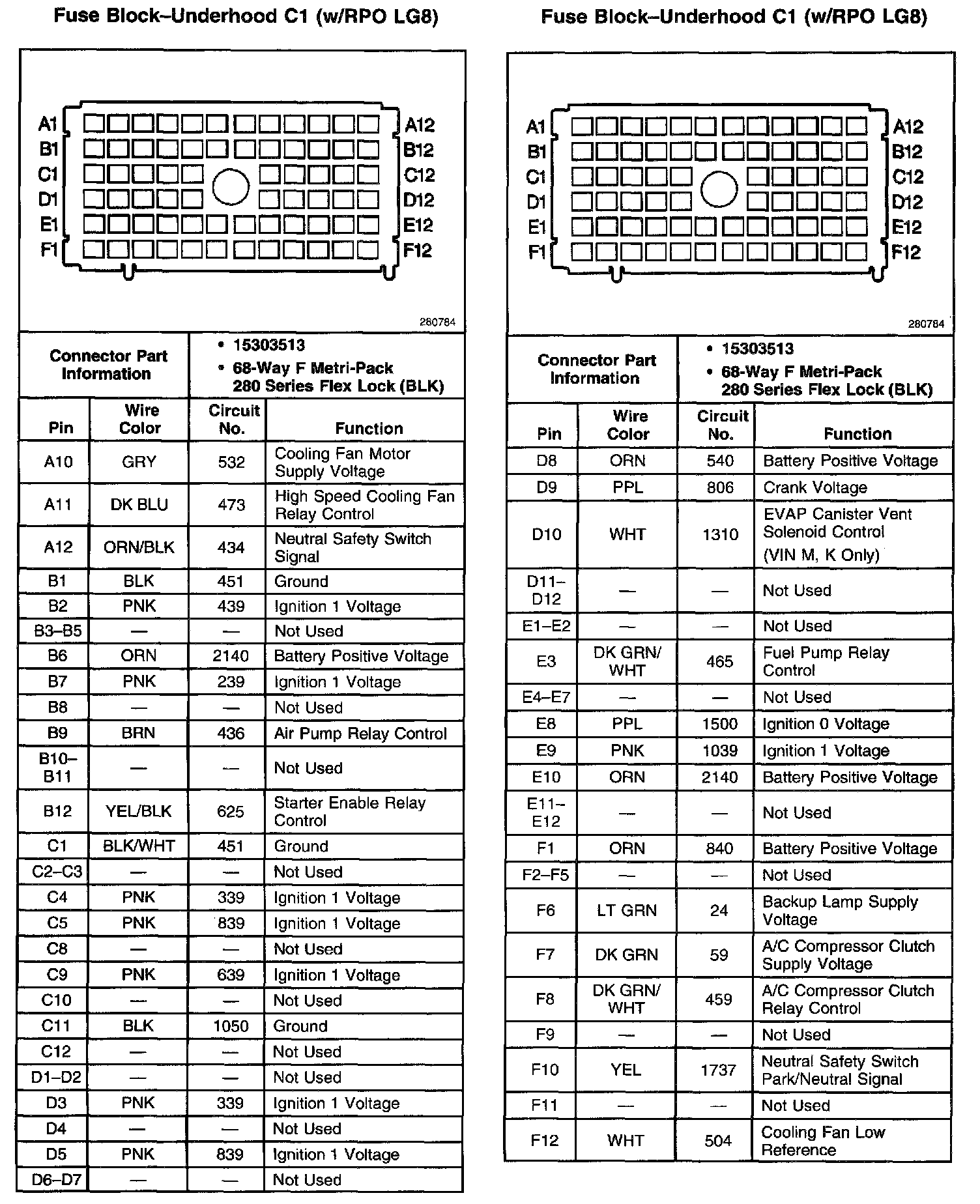

Fuse Block-Underhood C1 (W/RPO LG8) (Part 2 Of 2):
